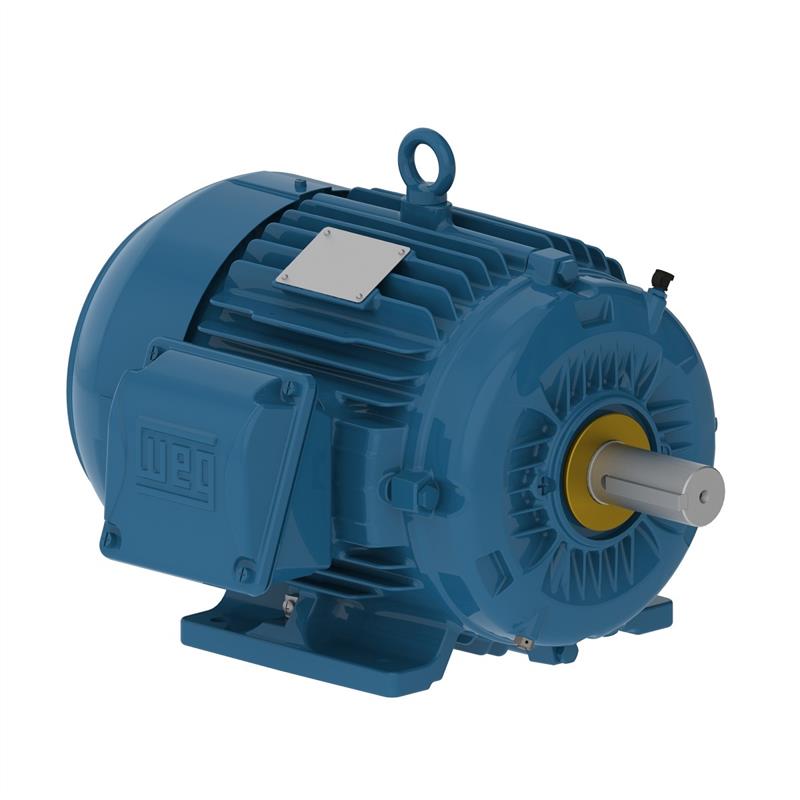

15036ST3HIE445TS-W22 WEG Motor (150 HP, 3600 RPM, 3 Phase, 444/5TS Frame, TEFC Enclosure, 575 Voltage)

15036ST3HIE445TS-W22 WEG Motor (150 HP, 3600 RPM, 3 Phase, 444/5TS Frame, TEFC Enclosure, 575 Voltage)

15036ST3HIE445TS-W22

$15,619.30 USD
$15,619.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 15036ST3HIE445TS-W22, 150 HP, 110 KW, 3600 RPM, 3 Phase, 444/5TS Frame, TEFC Enclosure, 575 Voltage

Applications
WEG's IEEE841 motors are specially suited for Pulp & Paper mills, Steel mills, ical Plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
Features
Class F insulation (Impregnation Resin and magnet wire are class H)
F1 Mounted (F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings

Specifications

Brand
WEG
Catalog Number
15036ST3HIE445TS-W22
Type
Motors
HP
150
KW
110
RPM
3600
Phase
3
C Dimension
41.2
Service Factor
1.15
Frame
444/5TS
Enclosure
TEFC
Full Load Amps
129
Mount
Foot Mount
Voltage
575
Warranty
1 Year

Support Documents (pdf)
Ver todos los detalles
