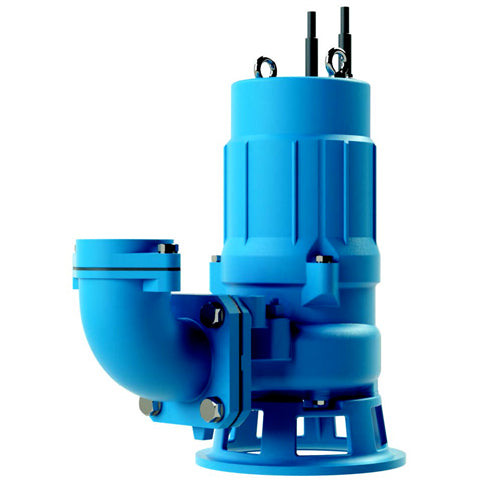

148313 Barnes Pumps SEC Series Submersible Cutter Pump (3SEC2092A, 2 HP, 208-230 Volts, 3 Phase, 3450 RPM, 3" Discharge, 230 GPM Max, 46 ft Max Head, 39 ft Cord)
148313 Barnes Pumps SEC Series Submersible Cutter Pump (3SEC2092A, 2 HP, 208-230 Volts, 3 Phase, 3450 RPM, 3" Discharge, 230 GPM Max, 46 ft Max Head, 39 ft Cord)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:148313
Precio habitual
$1,894.00 USD
Precio habitual
$2,841.00 USD
Precio de oferta
$1,894.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Barnes Pumps 148313, Submersible Cutter Pumps , SEC Series, 3SEC2092A Model Number, 2 HP, 3500 RPM, 208-230 Voltage, 3 NPT w/ 32-Bolt Flange Discharge Elbow,
| Applications | |
| The Barnes SEC Cutter Pump is designed to solve clogging problems in municipal, industrial and commercial applications with light solids content. The pump includes everything you need to install the pump into mutliple installations. Each pump is equipped with a horizontal JIS80 discharge, and sold with a 3 or 4 vertical discharge elbow AND our JIS80 to 4 ANSI flange adapter. | |
| Features | |
| * Flange adapter not included with 3SEC2092A | |
| Rugged pump design, constructed with ASTM A-48 Class 30 Cast Iron | |
| Removable stand and discharge accessories to fit perfectly in freestanding installations or on a variety of guide rail systems | |
| Air filled motor protected with integral moisture and temperature sensors | |
| Steel cutting plate and impeller blade provide superior cutting | |
| Package Features: By providing a single out-of-the box solution, this package will allow for simplified inventory, and no surprises during installation | |
Specifications | |
Brand |
Barnes Pumps |
Catalog Number |
148313 |
Type |
Submersible Cutter Pumps |
Series |
SEC Series |
Model Number |
3SEC2092A |
HP |
2 |
RPM |
3500 |
Voltage |
208-230 |
PH / HZ |
3/60 |
Discharge Elbow |
3 NPT w/ 32-Bolt Flange |
Construction |
ASTM A-48 Class 30 Cast Iron |
Max Liquid Temp |
104 Deg. Continuous |
Sensor Cord |
39' length included |
Power Cord |
39' length included |
Moisture Sensor |
Normally Open, Relay Required |
Temperature Sensor |
Normally Closed, Relay Required |
NEMA Start Code |
M |
Insul. Class |
F |
FLA |
5.5-5.7 |
LRA |
53 |
Cord Size |
16/4 |
Cord Type |
SOW |
CORD O.D. inch |
.44 |
Included Adapters |
3" Flanged Elbow: Cast Iron A-48, Class 30 3" NPT Adapter: Cast Iron A-48, Class 30 |
Discharge |
JIS 80 Horizontal Flange |
Pump Curves |
See Support Documents |
Support Documents (pdf) |
