Barnes Pumps

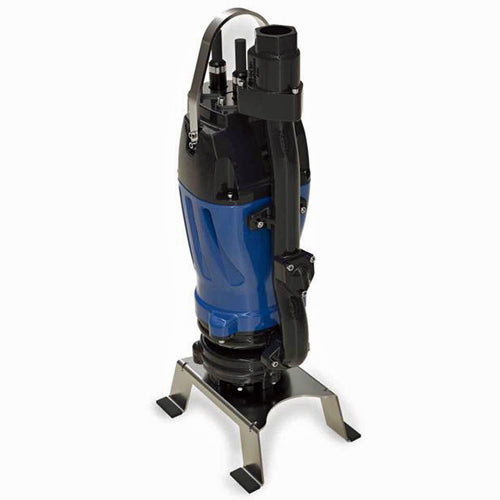

145473 Barnes Pumps Razor Submersible Grinder Pumps (ZOGP2042L, 2 HP, 480 Volt, 3 Phase, 60 Hz, 3450 RPM)

145473 Barnes Pumps Razor Submersible Grinder Pumps (ZOGP2042L, 2 HP, 480 Volt, 3 Phase, 60 Hz, 3450 RPM)

SKU:145473

Precio habitual $2,824.67 USD
Precio habitual $4,237.00 USD Precio de oferta $2,824.67 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Barnes Pumps 145473, Recessed Vortex Submersible Grinder Pumps , ZOGP2042L Model Number, 2 HP, 480 Volt, 3 Phase, 60 Hz, 3450 RPM,
Applications
The Barnes RAZOR ZOGP Series Grinder Pump is designed to reduce domestic sewage to a finely ground slurry.
Features
SINGLE PHASE Motor - Capacitor Start/Capacitor Run.
THREE PHASE Motor - Tri-Voltage 208-240/480, requires overload protection to be included in control panel.
RECOMMENDED ACCESSORIES - break away fitting (BAF), Check Valve, Control Panel.
Patented Axial Cutter: Provides Superior Non-Clogging Versus Radial Design
Light Weight: Designed for Ease of Installation and Service.
Convenient Maintenance: Utilize Single Tool for Service and Maintenance.
Non-Overloading: Built to Handle Varying Pressures without Wear.
Serviceability: Plug-n-Play Cord Provides Easy Service without Requiring Removal of Epoxy in Conduit.
Retrofit: Configurations Available to Retrofit into Existing Barnes Applications and Competitor's Grinder Installs.
Online Configurator: Highly Customizable Solutions.
STAND SOLD SEPARATELY

Specifications

Brand
Barnes Pumps
Catalog Number
145473
Type
Recessed Vortex Submersible Grinder Pumps
Series
RAZOR ZOGP Series
Model Number
ZOGP2042L
HP
2
Volt
480
Phase
3
Hz
60
RPM
3450
NEMA Start Code
H
Full Load Amps
4.6
Locked Rotor Amps
22.0
Cord Size
12/4
Cord Type
SOW
Discharge
1-1/4" NPT
Liquid Temp
104F
