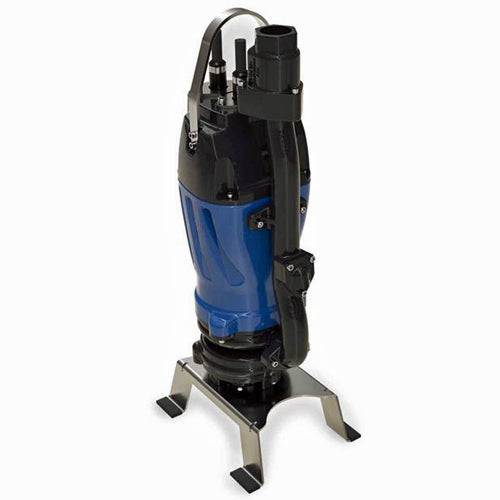

145472 Barnes Pumps Razor Submersible Grinder Pumps (ZOGP2092L, 2 HP, 208-240 Volt, 3 Phase, 60 Hz, 3450 RPM)
145472 Barnes Pumps Razor Submersible Grinder Pumps (ZOGP2092L, 2 HP, 208-240 Volt, 3 Phase, 60 Hz, 3450 RPM)
SKU:145472
Precio habitual
$2,824.67 USD
Precio habitual
$4,237.00 USD
Precio de oferta
$2,824.67 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Barnes Pumps 145472, Recessed Vortex Submersible Grinder Pumps , ZOGP2092L Model Number, 2 HP, 208-240 Volt, 3 Phase, 60 Hz, 3450 RPM,
Applications | |
The Barnes RAZOR ZOGP Series Grinder Pump is designed to reduce domestic sewage to a finely ground slurry. | |
Features | |
SINGLE PHASE Motor - Capacitor Start/Capacitor Run. | |
THREE PHASE Motor - Tri-Voltage 208-240/480, requires overload protection to be included in control panel. | |
RECOMMENDED ACCESSORIES - break away fitting (BAF), Check Valve, Control Panel. | |
Patented Axial Cutter: Provides Superior Non-Clogging Versus Radial Design | |
Light Weight: Designed for Ease of Installation and Service. | |
Convenient Maintenance: Utilize Single Tool for Service and Maintenance. | |
Non-Overloading: Built to Handle Varying Pressures without Wear. | |
Serviceability: Plug-n-Play Cord Provides Easy Service without Requiring Removal of Epoxy in Conduit. | |
Retrofit: Configurations Available to Retrofit into Existing Barnes Applications and Competitor's Grinder Installs. | |
Online Configurator: Highly Customizable Solutions. | |
STAND SOLD SEPARATELY |
Specifications | |
Brand |
Barnes Pumps |
Catalog Number |
145472 |
Type |
Recessed Vortex Submersible Grinder Pumps |
Series |
RAZOR ZOGP Series |
Model Number |
ZOGP2092L |
HP |
2 |
Volt |
208-240 |
Phase |
3 |
Hz |
60 |
RPM |
3450 |
NEMA Start Code |
H |
Full Load Amps |
8.5-8.2 |
Locked Rotor Amps |
43.9 |
Cord Size |
12/4 |
Cord Type |
SOW |
Discharge |
1-1/4" NPT |
Liquid Temp |
104F |
