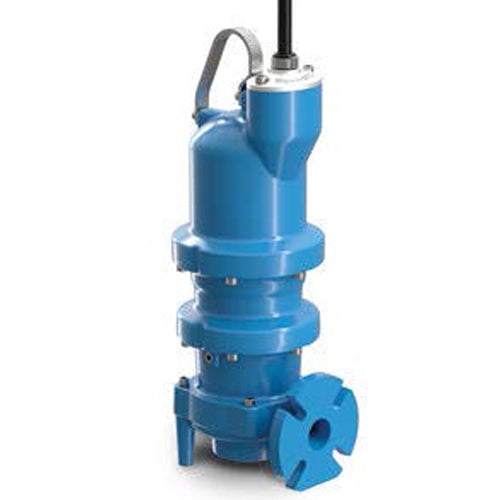

143385N Barnes Submersible Grinder Pump (7.5 HP, 208-230/460 Voltage, 3 Phase, 2.50"/3" Discharge, 155 Max GPM, NGVHH Blade Series)
143385N Barnes Submersible Grinder Pump (7.5 HP, 208-230/460 Voltage, 3 Phase, 2.50"/3" Discharge, 155 Max GPM, NGVHH Blade Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:143385N
Precio habitual
$7,886.00 USD
Precio habitual
$11,829.00 USD
Precio de oferta
$7,886.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Barnes 143385N, Horizontal Submersible Grinder Pump Type, NGVHH Blade Series, 7.5 HP, 208-230/460 Voltage, 3 Phase, 2.50"/3" Discharge, 155 Max GPM,
| Applications | |
| Non-explosion proof grinder pump series designed to handle wastewater applications requiring high capacity, high head, and high flow. Available from 3-15 HP. | |
| Features | |
| Plug-n-play cord with quick disconnect capability | |
| Oil-Filled Motor for optimal motor cooling and maximum bearing life | |
| Stainless steel hardware provides resistance against corrosion | |
| Moisture detection probe alerts pending seal issues before water can enter the motor | |
| Reduced clogging issues due to Vortex impeller design | |
| Exclusive Slicerator slices with the full torque of the motor acting on a small area to provide the ultimate solution in solids reduction | |
| Available with vertical or horizontal discharge (18 Frame only) | |
| Double mechanical seals provide maximum motor protection | |
| Heavy duty, oil-lubricated bearings extend pump life | |
| Reversible stationary cutter for added service life | |
| Available in fiberglass pump station packages | |
Specifications | |
Brand |
Barnes |
Catalog Number |
143385N |
Type |
Horizontal Submersible Grinder Pump |
Series |
NGVHH Blade |
Model |
NGVHH75N2 |
HP |
7.5 |
Voltage |
208-230/460 |
Phase |
3 |
Hz |
60 |
RPM |
3450 |
Discharge |
2.50"/3" |
Service Factor |
1 |
Driver Frame |
18 |
Shutoff Head (ft) |
242 |
Max GPM |
155 |
Impeller |
Cast Iron |
Shredding Ring |
Hardened 440C SS |
Leg Kit or Pump Stand |
Optional |
Sensors |
Moisture and Temparature Integral With Power Cord |
Volute |
Cast Iron |
Motor Housing |
Cast Iron |
Cord |
Not Included |
Warranty |
24 Months from Manufacture |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
