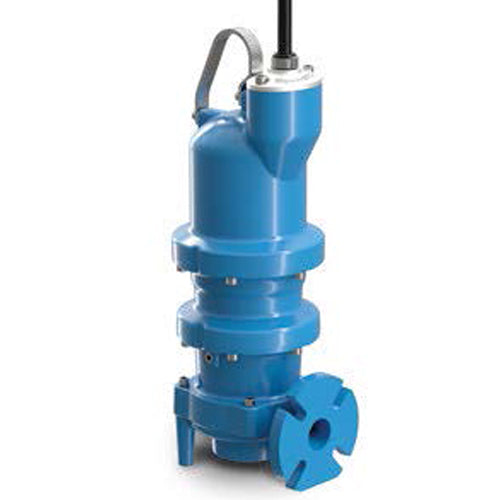

141357N Barnes Submersible Grinder Pump (5 HP, 575 Voltage, 3 Phase, 2"/2.50"/3" Discharge, Max GPM, NGVH Blade Series)
141357N Barnes Submersible Grinder Pump (5 HP, 575 Voltage, 3 Phase, 2"/2.50"/3" Discharge, Max GPM, NGVH Blade Series)
SKU:141357N
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Barnes 141357N, Horizontal Submersible Grinder Pump Type, NGVH Blade Series, 5 HP, 575 Voltage, 3 Phase, 2"/2.50"/3" Discharge, Max GPM,
| Applications | |
| Non-explosion proof grinder pump series designed to handle wastewater applications requiring high capacity, high head, and high flow. Available from 3-15 HP. | |
| Features | |
| Plug-n-play cord with quick disconnect capability | |
| Oil-Filled Motor for optimal motor cooling and maximum bearing life | |
| Stainless steel hardware provides resistance against corrosion | |
| Moisture detection probe alerts pending seal issues before water can enter the motor | |
| Reduced clogging issues due to Vortex impeller design | |
| Exclusive Slicerator slices with the full torque of the motor acting on a small area to provide the ultimate solution in solids reduction | |
| Available with vertical or horizontal discharge (18 Frame only) | |
| Double mechanical seals provide maximum motor protection | |
| Heavy duty, oil-lubricated bearings extend pump life | |
| Reversible stationary cutter for added service life | |
| Available in fiberglass pump station packages | |
Specifications | |
Brand |
Barnes |
Catalog Number |
141357N |
Type |
Horizontal Submersible Grinder Pump |
Series |
NGVH Blade |
Model |
NGVH5052 |
HP |
5 |
Voltage |
575 |
Phase |
3 |
Hz |
60 |
RPM |
3450 |
Discharge |
2"/2.50"/3" |
Service Factor |
1 |
Driver Frame |
18 |
Impeller |
Cast Iron |
Shredding Ring |
Hardened 440C SS |
Leg Kit or Pump Stand |
Optional |
Sensors |
Moisture and Temparature Integral With Power Cord |
Volute |
Cast Iron |
Motor Housing |
Cast Iron |
Cord |
Not Included |
Warranty |
24 Months from Manufacture |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
