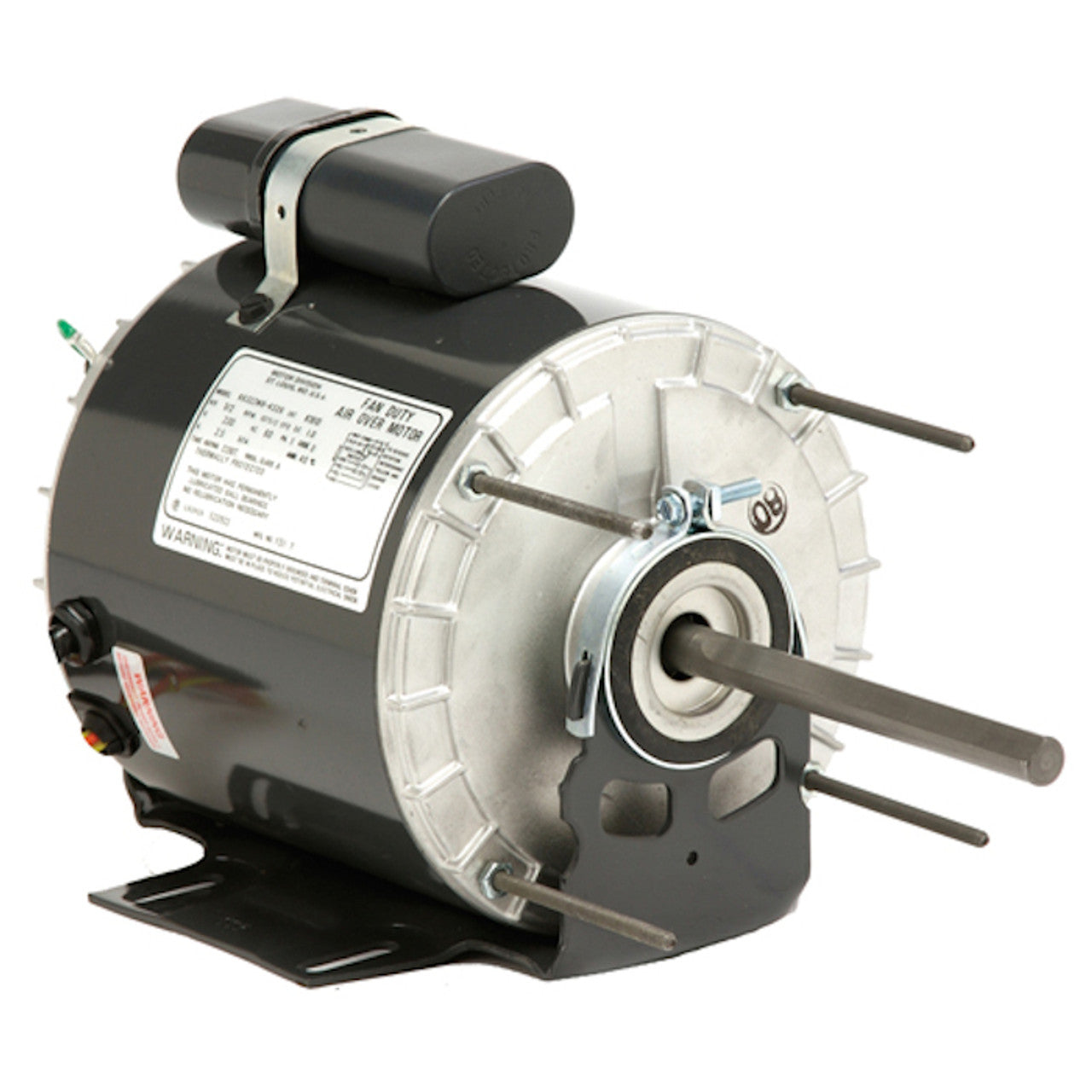

1384 US Motor Permanent Split Capacitor Unit Heater Fan Motor (1/4 HP, TEAO Enclosure, 1075 RPM, 48Z Frame, Resilient Base)
1384 US Motor Permanent Split Capacitor Unit Heater Fan Motor (1/4 HP, TEAO Enclosure, 1075 RPM, 48Z Frame, Resilient Base)
SKU:1384
Precio habitual
$216.96 USD
Precio habitual
Precio de oferta
$216.96 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
1384 US Motor (1/4 HP, TEAO Enclosure, 1075 RPM, 48Z Frame)
| Model_Number: | K055RGC1939015B |
| PRODUCT NAME: | .25 HP - TEAO - 1075 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | TEAO |
| HORSEPOWER: | .25 |
| KILOWATTS: | 0.2 |
| POLES: | 6 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1075 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 V |
| VOLTS : | 115 |
| FRME : | 48 |
| SHAFT CODE: | Z |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1.719 |
| MOUNTING: | RESILIENT |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 5 |
| RUNCAPVOLTS: | 440 |
| SHIPPING WEIGHT: | 15 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 31.5 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 6.051 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 8.15 |
| FULL LOAD AMPS PRIMARY: | 3.6 |
| SERVICE FACTOR AMPS PRIMARY: | 3.6 |
