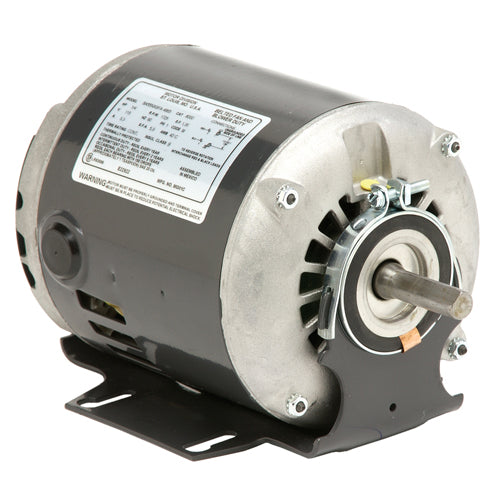

1364 US Motor Belted Fan & Blower Motor (1364, 0.333 HP, ODP, 1725 RPM)
1364 US Motor Belted Fan & Blower Motor (1364, 0.333 HP, ODP, 1725 RPM)
[COUNT] shoppers are looking at this right now
SKU:1364
Precio habitual
$460.45 USD
Precio habitual
$0.00 USD
Precio de oferta
$460.45 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
1364 US Motor Belted Fan & Blower Motor (1364 - 0.333 HP - ODP - 1725 RPM)
| Model_Number: | S063HYP8154012B |
| Cat # | 1364 |
| PRODUCT NAME: | .333 HP - ODP - 1725 |
| PHASETYPE: | 1_SPLIT PHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | .333 |
| HORSEPOWER 2: | 0.111 |
| KILOWATTS: | 0.3 |
| POLES: | 4 |
| POLES 2: | 6 |
| NUMBER SPEEDS: | 2 |
| RPM: | 1725 |
| RPM 2: | 1140 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 V |
| VOLTS : | 115 |
| FRME : | 56 |
| STATOR DIAMETER: | 6.3 |
| STACK: | 1.5 |
| MOUNTING: | CRADLE/STUD |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.35 |
| SHIPPING WEIGHT: | 20 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | P |
| FULL LOAD AMPS PRIMARY: | 6.1/3.5 |
| SERVICE FACTOR AMPS PRIMARY: | 6.8/3.7 |
