Goulds Pumps
12BF1U9H0 Goulds Pump (3656 M Group Bronze Fitted, 75 HP, Three Phase, 60Hz, 230/460 Volt, 8.75" (8 3/4") Impeller Diameter, 3500 RPM, 3 x 4-10, TEPE, Carbon / Ceramic / Buna-N Shaft Sea)
12BF1U9H0 Goulds Pump (3656 M Group Bronze Fitted, 75 HP, Three Phase, 60Hz, 230/460 Volt, 8.75" (8 3/4") Impeller Diameter, 3500 RPM, 3 x 4-10, TEPE, Carbon / Ceramic / Buna-N Shaft Sea)
SKU:12BF1U9H0
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.

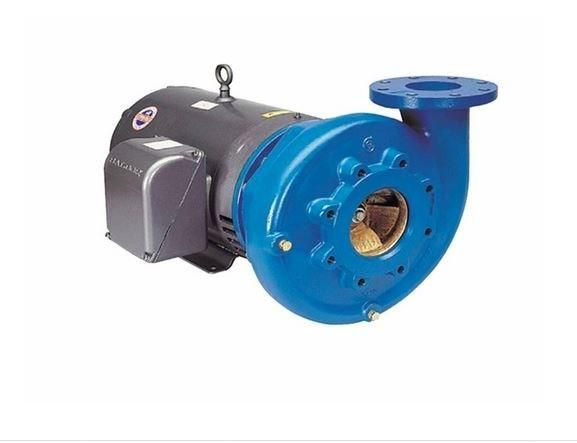

12BF1U9H0 Goulds Pump (3656 M Group Bronze Fitted, Flanged Close Coupled Centrifugal, 75 HP, Three Phase, 60Hz, 230/460 Volt, 8.75" (8 3/4") Impeller Diameter, 3500 RPM, 3 x 4-10, TEPE - Totally Enclosed Fan Cooled (Premium Efficient) Motor Enclosure, Carbon / Ceramic / Buna-N Shaft Sea)
| Adapter Material | Cast Iron |
| Capacities (GPM) | 1600 GPM (363 m3/hr) at 3500 RPM, 4500 GPM (1020 m3/hr) at 1750 RPM |
| Casing Material | Cast Iron |
| Casing Wear Ring Material | Bismuth Bronze |
| Discharge NPT (Inches) | 3" Flanged |
| Heads To (Feet) | 490 feet TDH (150m) at 3500 RMP, 300 feet TDH (90m) at 1750 RPM |
| HP | 75 |
| Hz | 60 |
| Impeller Material | Sil-Brass |
| Impeller Size (Inches) | 8.75" (8 3/4") |
| Material | Bronze Fitted |
| Maximum Working Pressure (PSIG) | 200 PSIG (14 bars) |
| Motor Enclosure Type | TEFC PE - Totally Enclosed Fan Cooled (Premium Efficient) |
| Phase | 3 Ph (Three Phase) |
| Quick Specs | 75HP 3/60/230-460 TEPE 8.75" |
| Rotary | Carbon |
| Shaft Seal Material | Carbon / Ceramic / Buna-N |
| Speed (RPM) | 3500 |
| Stationary | Ceramic |
| Suction NPT (Inches) | 4" Flanged |
| Suction Pressure | 100 PSIG (9 bars) |
| UPC | 069766689805 |
| Voltage | 230/460 |
| Build-to-order items | This is a build-to-order item and can not be cancelled or returned once the order is placed. |
