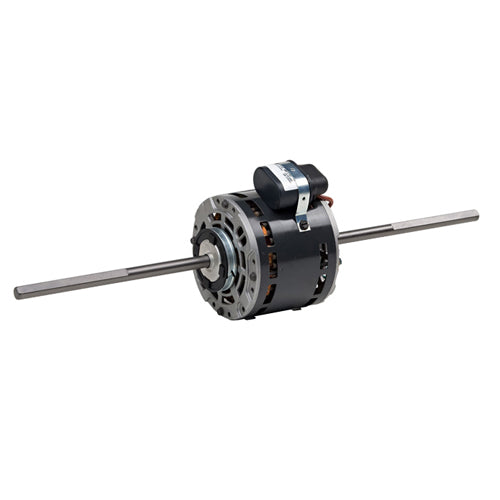

1257 US Motor (0.167 HP, OPEN, 1450 RPM, 115-120V, 3 Speed)
1257 US Motor (0.167 HP, OPEN, 1450 RPM, 115-120V, 3 Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:1257
Precio habitual
$300.95 USD
Precio habitual
$0.00 USD
Precio de oferta
$300.95 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
1257 US Motor (0.167 HP - OPEN - 1450 RPM)
| Model_Number: | K048CLD1123011B |
| PRODUCT NAME: | .167 HP - OPEN - 1450 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | OPEN |
| HORSEPOWER: | .167 |
| KILOWATTS: | 0.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 3 |
| RPM: | 1450 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115-120 V |
| VOLTS : | 115 |
| VOLTS 2: | 120 |
| STATOR DIAMETER: | 4.8 |
| STACK: | 1 |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6201 |
| SHAFT END BEARING: | 6201 |
| ROTATION: | CCW LEAD END |
| RUNCAPMFD: | 7.5 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 11 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 10.65 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 5.633 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 3.27 |
| FULL LOAD AMPS PRIMARY: | 2.5 |
