WEG

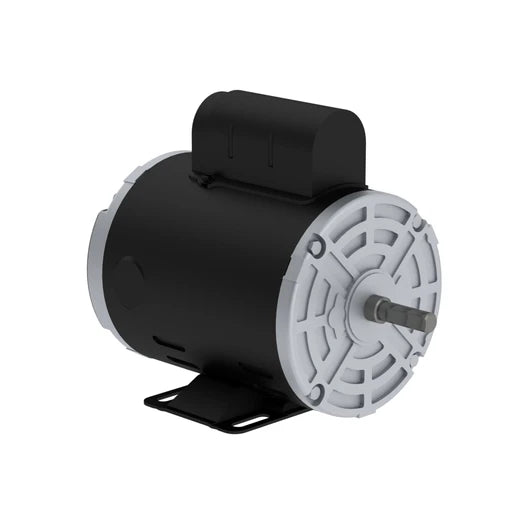

.1218OS1B48-S WEG General Purpose Motor (14360313, Rolled Steel, 0.12 HP, 4P, 48 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, ODP, Foot Mounted)
.1218OS1B48-S WEG General Purpose Motor (14360313, Rolled Steel, 0.12 HP, 4P, 48 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, ODP, Foot Mounted)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:.1218OS1B48-S
Precio habitual
$178.89 USD
Precio habitual
$201.00 USD
Precio de oferta
$178.89 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
.1218OS1B48-S WEG General Purpose Motor (Rolled Steel, 0.12 HP, 4P, 48 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, ODP, Foot Mounted)
| Frame | 48 |
|---|---|
| Output | 0.12 HP (0.09 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1740 rpm |
| Slip | 3.33 % |
| Rated voltage | 115/208-230 V |
| Rated current | 2.84/1.57-1.42 A |
| L. R. Amperes | 13.6/7.54-6.82 A |
| LRC | 4.8x(Code P) |
| No load current | 2.60/1.12-1.30 A |
| Rated torque | 0.362 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 310 % |
| Locked rotor time | 46s (cold) 26s (hot) |
