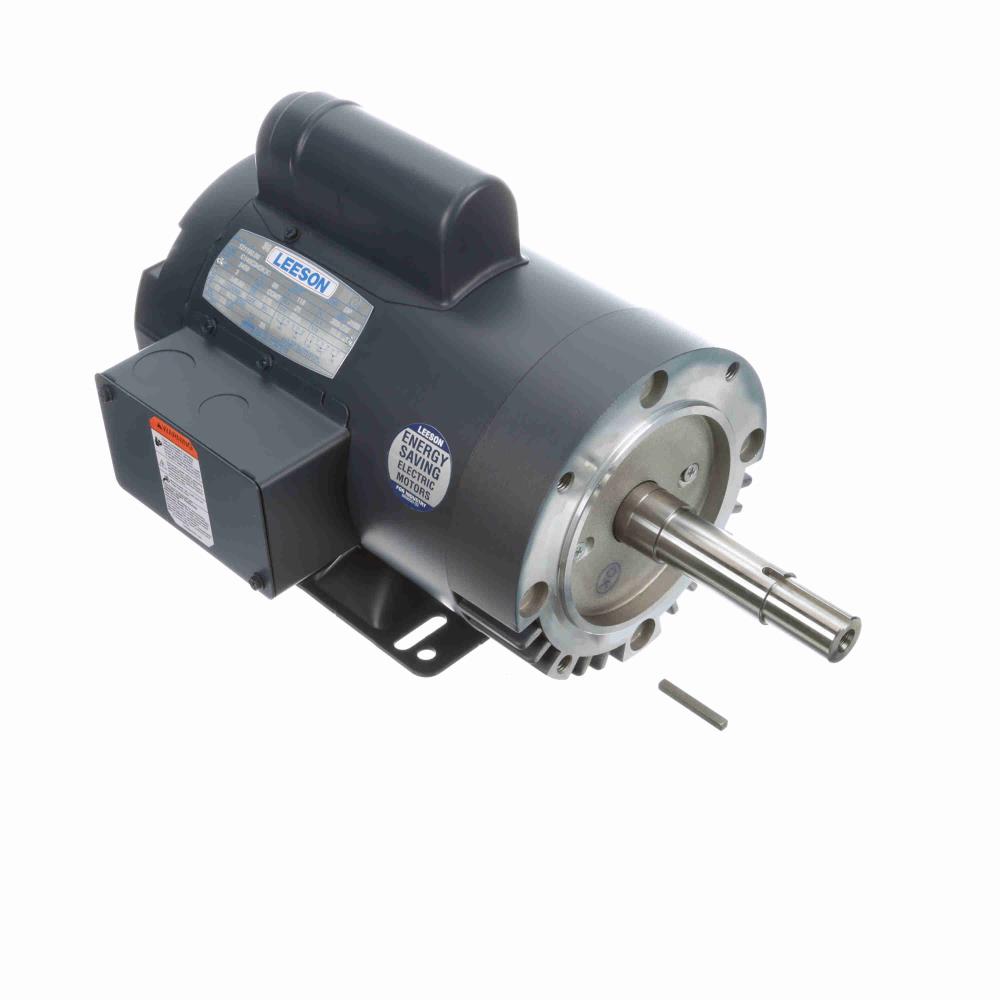

121190.00 Leeson Motors (C145C34DK3, 2 HP, 145 Frame, 3450RPM, 115/208-230V, DP)

Name: 121190.00 Leeson Motors (C145C34DK3, 2 HP, 145 Frame, 3450RPM, 115/208-230V, DP)
Brand: Leeson
SKU: 121190
Availability: InStock

SKU:121190

$0.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Leeson Motors 121190, JM Pump, C145C34DK3, 2 HP, 145 Frame, 3450RPM, 115/208-230V, DP

Applications
Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required.

Features
NEMA 56 C-Face mounting face
Mechanically locked ball bearing on shaft-end, limits axial shaft movement
Quiet operation through Super Hush flow-through ventilation system
416 stainless steel shafts
Quick Connect terminals to reduce installation time
Auto re-set protectors
Stator windings impregnated with extra heavy varnish system
High overload capacities provided by high service factor ratings
Double-sealed ball bearings
UL and C.S.A recognized

Specifications
Brand	Leeson Motors
Catalog Number	121190
Type	Leeson Electric Motor
Series	JM Pump
Model Number	C145C34DK3
HP	2
Frame	145
RPM	3450RPM
Voltage	115/208-230V
Enclosure	DP
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)
Notes

Questions about this product? Contact our team!
Product images may be generic.
