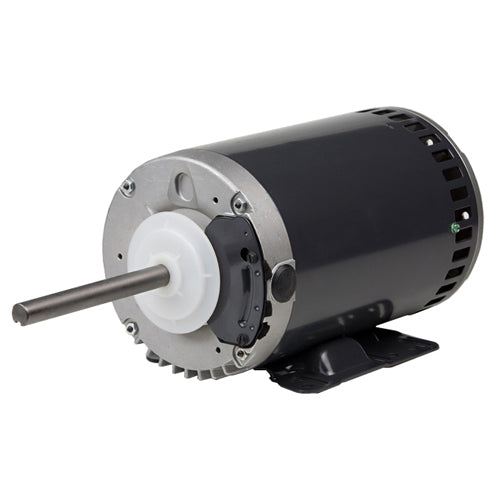

1140 Nidec US Motor 6.3" Dia. Commercial Condenser Fan Motor (2 HP, Three Phase, OAO Enclosure, 1140 RPM, 575 Volt, 60 Hz)

1140 Nidec US Motor 6.3" Dia. Commercial Condenser Fan Motor (2 HP, Three Phase, OAO Enclosure, 1140 RPM, 575 Volt, 60 Hz)

👁️ [COUNT] People are currently viewing this product.

1140

$771.11 USD
$0.00 USD $771.11 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

1140 Nidec US Motor 6.3" Dia. Commercial Condenser Fan Motor (2 HP, Three Phase, OAO Enclosure, 1140 RPM, 575V, 60 Hz)

Three Phase
6.3" Dia. Commercial Condenser Fan
Open and Totally Enclosed Air Over
60°C Ambient
Rigid Base Mount
Model_Number
P063GDY4845015B
PRODUCT NAME
2 HP - OAO - 1140
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
OAO
HORSEPOWER
2
KILOWATTS
1.5
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
575 V
VOLTS
575
STATOR DIAMETER
6.3
STACK
4.5
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
44
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
497.5
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
322.8
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
J
LOCKED ROTOR AMPS
13.03
FULL LOAD AMPS PRIMARY
2.8
SERVICE FACTOR AMPS PRIMARY
2.8
