Barnes Pumps

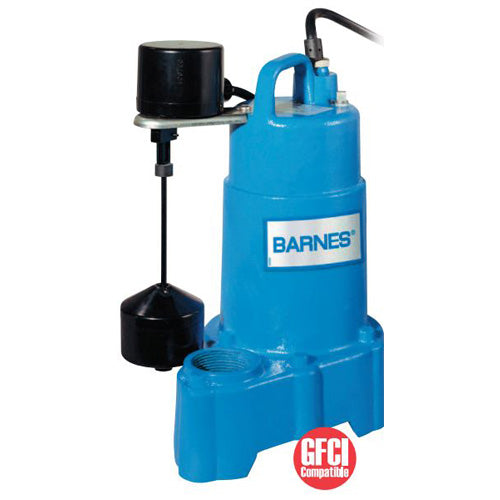

112547 Barnes Submersible Effluent Pumps (SP33, 1/3 HP, 120/1 V/PH, 1 1/2" NPT Discharge, 3450 RPM)

Name: 112547 Barnes Submersible Effluent Pumps (SP33, 1/3 HP, 120/1 V/PH, 1 1/2" NPT Discharge, 3450 RPM)
Brand: Barnes Pumps
SKU: 112547
Price: 259.55 USD
Availability: InStock

SKU:112547

$259.55 USD

~~$358.00 USD~~ $259.55 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Barnes 112547, Submersible Effluent Pump Series SP33 Series, SP33 Catalog Number, 1/3 HP, 120/1 V/PH, 1 1/2" NPT Discharge

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.

Features
Cast Iron Construction.
Cast Iron Vortex Impeller.

Specifications
Brand	Barnes
Part Number	112547
Type	Effluent Pump
Series	Submersible Effluent Pump Series SP33
Catalog Number	SP33
HP	1/3
V/PH	120/1
Hz	60
Discharge	1 1/2" NPT
Automatic	No
RPM	3450
NEMA START CODE	B
FULL LOAD AMPS	5.8
CORD LENGTH	10 ft. (3m)
CORD SIZE	18/3
CORD TYPE	SJTOW
Waranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Notes

Questions about this product? Contact our team!
Product images may be generic.

Ver todos los detalles
