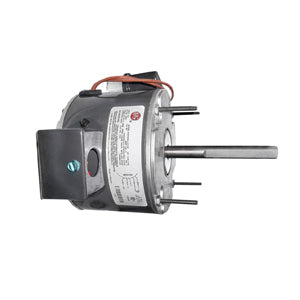

1101 US Motor OEM Replacement Motor (1/10-1/15 HP, 1550 RPM), 42Y Frame, TEAO, 1 Phase, 115V)
1101 US Motor OEM Replacement Motor (1/10-1/15 HP, 1550 RPM), 42Y Frame, TEAO, 1 Phase, 115V)
SKU:1101
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Cat # 1101
Model_Number: K048BAJ0108011B
PRODUCT NAME: .1 HP - ENCLOSED - 1550
PHASETYPE: 1_PERMANENT SPLIT CA
MOTOR ENCLOSURE: ENCLOSED
HORSEPOWER: .1
HORSEPOWER 2: 0.067
POLES: 4
NUMBER SPEEDS: 2
RPM: 1550
HERTZ: 60
VOLTS PRIMARY: 115 V
VOLTS : 115
FRME : 42
SHAFT CODE: Y
STATOR DIAMETER: 4.8
STACK: 0.75
MOTOR TYPE: FHP
OPPOSITE END BEARING: BALL
SHAFT END BEARING: BALL
AMBIENT: 40
ROTATION: CCW LEAD END
SERVICE FACTOR: 1
RUNCAPMFD: 3
RUNCAPVOLTS: 370
SHIPPING WEIGHT: 9
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 6.393
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 2.447
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
LOCKED ROTOR AMPS: 2.48
FULL LOAD AMPS PRIMARY: 1.6-1.1
