Berkeley Pumps

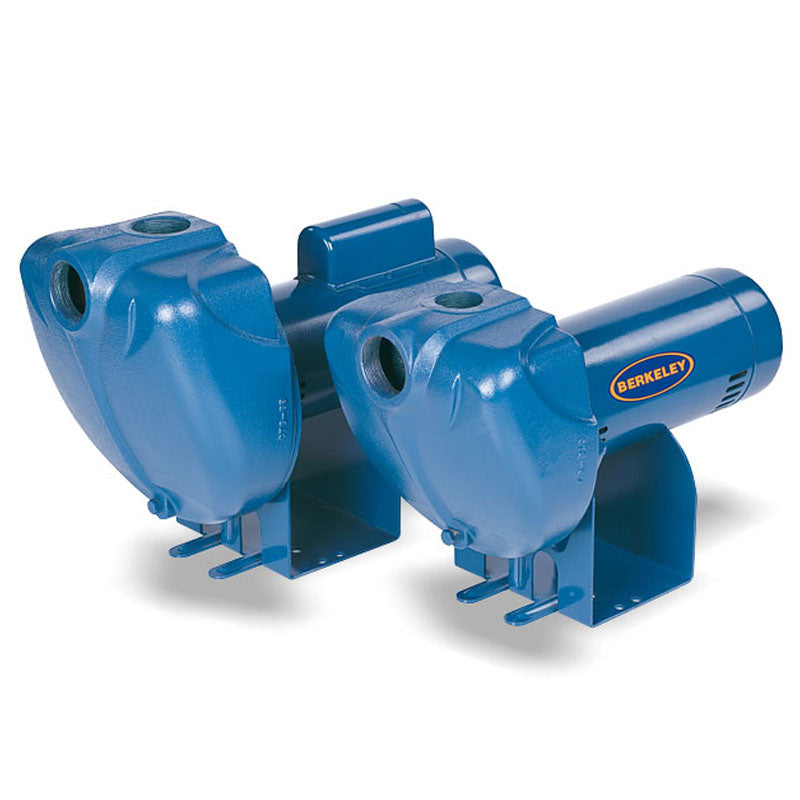

10LTHH3 Berkeley Self-Priming Centrifugal Pumps (1 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge, LTHH Series)

10LTHH3 Berkeley Self-Priming Centrifugal Pumps (1 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge, LTHH Series)

10LTHH3

$897.87 USD
$897.87 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley 10LTHH3, Self-Priming Centrifugal Pumps Type, LTHH Series, 1 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge,

Applications
The LTHH Series of cast iron sprinkler pumps offer superior un-matched performance. Available in 1 HP through 2-1/2 HP models. These pumps offer "single body fill" priming to 25 foot lifts, in less than 5 minutes.LTHH models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA, required by many state and local codes.The LTHH models are completely interchangeable with the original BERKELEY LTH Series models, saving costly plumbing changes. APPLICATIONS:Residential irrigation pumpcan be safely operated by timer or otherautomatic device Contractorsfor dewatering excavation, water transfer and supply Agriculture...seed bed and plot irrigation, stock watering Industrial...sump drainage, marine pumping, liquid transfer and supply operations.
Features
Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance.
High Head Models deliver up to 145' of head with capacities to 95 GPM
Easy Serviceability - Normal wearing parts are easily accessible for service and replacement without disturbing piping or mounting
Motor Windings use superior insulation materials to protect against excessive moisture and contaminants. Ensures prolonged motor life
Balanced Rotor is die cast under high pressures for uniform performance and greater efficiency
Drain Port provided for easy serviceability

Specifications

Brand
Berkeley
Catalog Number
10LTHH3
Type
Self-Priming Centrifugal Pumps
Series
LTHH
HP
1
Phase
3
Voltage
208-230/460
Suction
2"
Discharge
1-1/2"
Body and Seal Plate
Close-grained cast iron
Impeller
Noryl
Diffuser
Reinforced polypropylene
Base
Steel, 10 gauge
Motor
2-compartment
Shaft
One-piece threaded 300 grade stainless steel
Max GPM
95
Max Head
up to 145'
Max. Operating Pressure
100 PSI

Support Documents (pdf)
