Berkeley Pumps

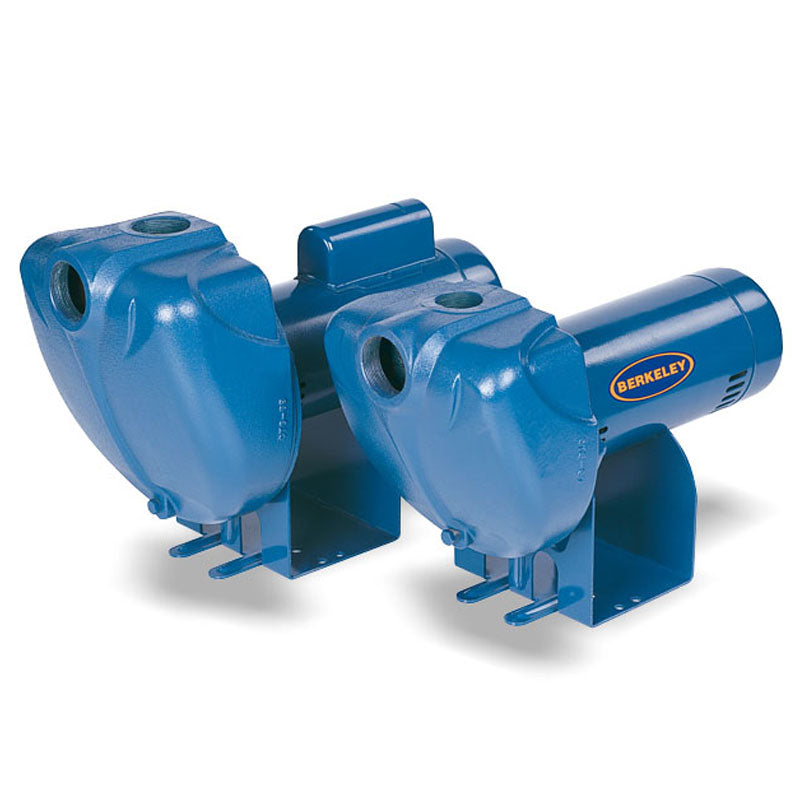

10LTHH3-575T Berkeley Self-Priming Centrifugal Pumps (1 HP, 3 Phase, 115/230 Voltage, 1-1/2" Discharge, LTHH Series)

Name: 10LTHH3-575T Berkeley Self-Priming Centrifugal Pumps (1 HP, 3 Phase, 115/230 Voltage, 1-1/2" Discharge, LTHH Series)
Brand: Berkeley Pumps
SKU: 10LTHH3-575T
Price: 1133.18 USD
Availability: InStock

SKU:10LTHH3-575T

$1,133.18 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley 10LTHH3-575T, Self-Priming Centrifugal Pumps Type, LTHH Series, 1 HP, 3 Phase, 115/230 Voltage, 1-1/2" Discharge,

Applications
The LTHH Series of cast iron sprinkler pumps offer superior un-matched performance. Available in 1 HP through 2-1/2 HP models. These pumps offer "single body fill" priming to 25 foot lifts, in less than 5 minutes. LTHH models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA, required by many state and local codes. The LTHH models are completely interchangeable with the original BERKELEY LTH Series models, saving costly plumbing changes. APPLICATIONS: Residential irrigation pumpcan be safely operated by timer or other automatic device Contractorsfor dewatering excavation, water transfer and supply Agriculture...seed bed and plot irrigation, stock watering Industrial...sump drainage, marine pumping, liquid transfer and supply operations.

Features
Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance.
High Head Models deliver up to 145' of head with capacities to 95 GPM
Easy Serviceability - Normal wearing parts are easily accessible for service and replacement without disturbing piping or mounting
Motor Windings use superior insulation materials to protect against excessive moisture and contaminants. Ensures prolonged motor life
Balanced Rotor is die cast under high pressures for uniform performance and greater efficiency
Drain Port provided for easy serviceability

Specifications
Brand	Berkeley
Catalog Number	10LTHH3-575T
Type	Self-Priming Centrifugal Pumps
Series	LTHH
HP	1
Phase	3
Voltage	115/230
Suction	2"
Discharge	1-1/2"
Body and Seal Plate	Close-grained cast iron
Impeller	Noryl
Diffuser	Reinforced polypropylene
Base	Steel, 10 gauge
Motor	2-compartment
Shaft	One-piece threaded 300 grade stainless steel
Max GPM	95
Max Head	up to 145'
Max. Operating Pressure	100 PSI
