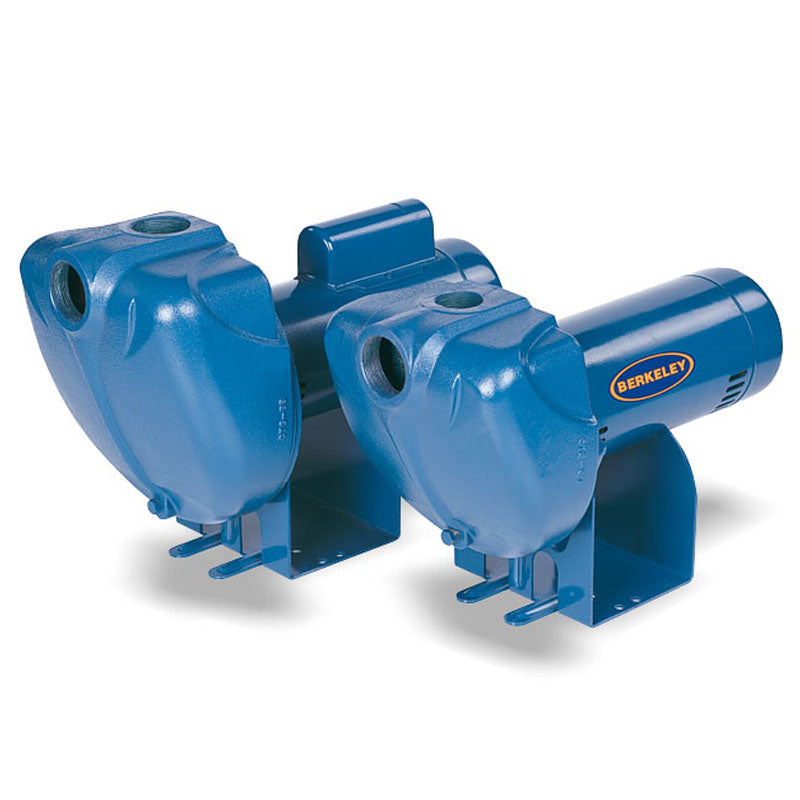

10LTHH Berkeley Self-Priming Centrifugal Pumps (1 HP, 1 Phase, 115/230 Voltage, 1-1/2" Discharge, LTHH Series)
10LTHH Berkeley Self-Priming Centrifugal Pumps (1 HP, 1 Phase, 115/230 Voltage, 1-1/2" Discharge, LTHH Series)
SKU:10LTHH
Precio habitual
$611.41 USD
Precio habitual
Precio de oferta
$611.41 USD
Precio unitario
/
por
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Berkeley 10LTHH, Self-Priming Centrifugal Pumps Type, LTHH Series, 1 HP, 1 Phase, 115/230 Voltage, 1-1/2" Discharge,
Applications | |
The LTHH Series of cast iron sprinkler pumps offer superior un-matched performance. Available in 1 HP through 2-1/2 HP models. These pumps offer "single body fill" priming to 25 foot lifts, in less than 5 minutes.LTHH models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA, required by many state and local codes.The LTHH models are completely interchangeable with the original BERKELEY LTH Series models, saving costly plumbing changes. APPLICATIONS:Residential irrigation pumpcan be safely operated by timer or otherautomatic device Contractorsfor dewatering excavation, water transfer and supply Agriculture...seed bed and plot irrigation, stock watering Industrial...sump drainage, marine pumping, liquid transfer and supply operations. | |
Features | |
Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance. | |
High Head Models deliver up to 145' of head with capacities to 95 GPM | |
Easy Serviceability - Normal wearing parts are easily accessible for service and replacement without disturbing piping or mounting | |
Motor Windings use superior insulation materials to protect against excessive moisture and contaminants. Ensures prolonged motor life | |
Balanced Rotor is die cast under high pressures for uniform performance and greater efficiency | |
Drain Port provided for easy serviceability |
Specifications | |
Brand |
Berkeley |
Catalog Number |
10LTHH |
Type |
Self-Priming Centrifugal Pumps |
Series |
LTHH |
HP |
1 |
Phase |
1 |
Voltage |
115/230 |
Suction |
2" |
Discharge |
1-1/2" |
Body and Seal Plate |
Close-grained cast iron |
Impeller |
Noryl |
Diffuser |
Reinforced polypropylene |
Base |
Steel, 10 gauge |
Motor |
2-compartment |
Shaft |
One-piece threaded 300 grade stainless steel |
Max GPM |
95 |
Max Head |
up to 145' |
Max. Operating Pressure |
100 PSI |
