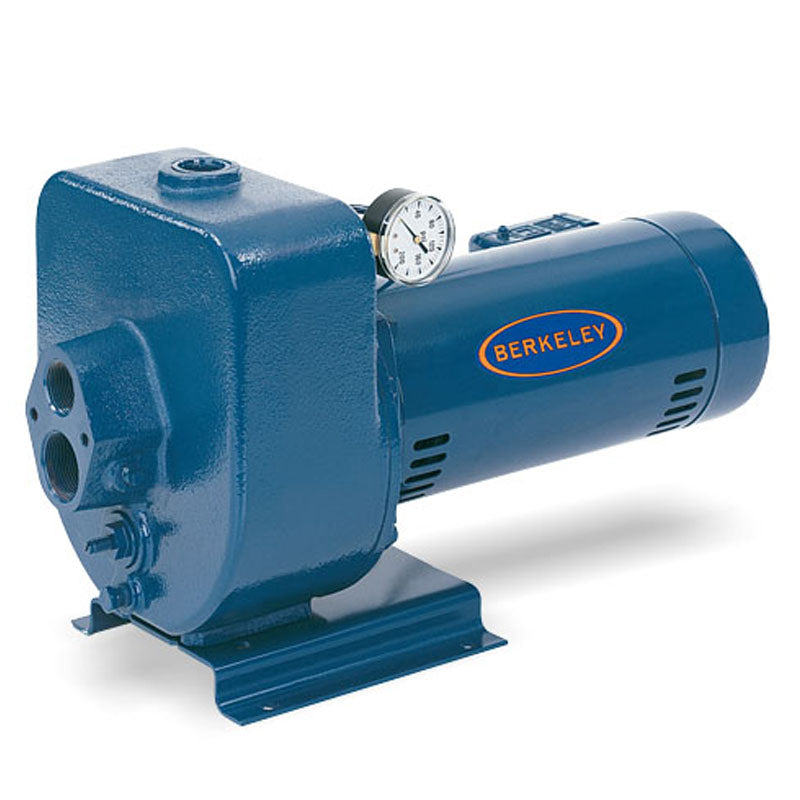

10LT2 Berkeley Horizontal Multi-Stage Jet Pump (1 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)
10LT2 Berkeley Horizontal Multi-Stage Jet Pump (1 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)
SKU:10LT2
Precio habitual
$1,301.26 USD
Precio habitual
Precio de oferta
$1,301.26 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Berkeley 10LT2, Cast iron, horizontal multi-stage Pump Type, LT2 Series, 1 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage,
| Applications | |
| LT2 Series Multi-Stage Jet Pumps are the highest performing pumps available in its category. The LT2 Series Convertible Jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4" Double Pipe, 2" and 3" Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft.) to provide a wide range of high pressure applications. APPLICATIONS Water systems and sprinkling for homes, farms and cottages. | |
| Features | |
| Automatic Pressure Regulator: Fasteracting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. See ordering information (deep well only). | |
| Quality Construction: Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing. | |
| Precision-Machined Diffusers: Assure faster priming. | |
| Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. | |
| Polycarbonate Impellers: Precisionmolded for perfect balance, and ultrasmooth for highest performance and efficiency. | |
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life. | |
| Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. | |
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency...dynamically balanced. | |
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation. | |
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance;. one-piece threaded shaft for positive impeller drive and alignment. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
10LT2 |
Type |
Cast iron, horizontal multi-stage Pump |
Series |
LT2 |
HP |
1 |
Suction |
1-1/4" |
Drive |
1" |
Discharge |
1" |
Voltage |
115/230 |
Body |
One-piece rugged cast iron |
Pump and Motor Shaft |
416 stainless steel |
Impeller |
Polycarbonate |
Diffuser |
Corrosion-resistant cast iron |
Pressure Switch Pre-Set |
3050 PSI |
Suction Ports |
Drive-over-Suction |
Regulator, tubing, pipe plug and compression fitting |
PKG 107 |
