Goulds Pumps

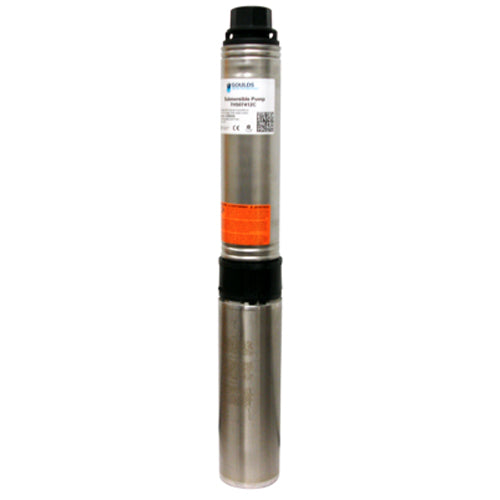

10HS10412C Goulds Pumps 4" Submersible Pump and Motor Package (1 HP, 16 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)
10HS10412C Goulds Pumps 4" Submersible Pump and Motor Package (1 HP, 16 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:10HS10412C
Precio habitual
$1,263.60 USD
Precio habitual
$2,106.00 USD
Precio de oferta
$1,263.60 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds Pumps 10HS10412C, 4" Submersible Well Pumps with Motor and Control Box , 1 HP, 16 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge,
| Applications | |
| The Goulds HS series 4" submersible pump features top quality materials and construction to provide reliable and efficient service. This pump is powered by a CentriPro 4" motor for dependable operation and long service life. | |
| Features | |
| Powered by CentriPro 4" motors for dependable operation and long service life. | |
| Built in Check Valve screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring loaded, o-ring poppet design for positive seal in all conditions. | |
| Nylon motor adapter for strength and corrosion resistance. | |
| Stainless steel hex design shafts, shaft couplings, casings and stage bowls inhibit corrosion. | |
| Noryl engineered composite impellers for abrasion resistance and durability. | |
| Lexan engineered composite diffusers are abrasion resistant. | |
| All engineered composite components are non-toxic, non-leaching, FDA compliant materials. | |
| Goulds Water Technology field proven floating impeller stack design for superior sand and abrasive handling and durability. | |
| Quad Lock Technology: 4 Roll Formed grooves provide durability and strength, tested to exceed strength of poly and PVC pipes. | |
| Complete pump/motor assemblies are CSA listed, CSA/CUS approved motors are available in 2-wire and 3-wire single phase designs. | |
| Maximum Allowable Pressure - 300 PSI | |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
10HS10412C
|
|
Type
|
4" Submersible Well Pumps with Motor and Control Box
|
|
Series
|
HS Series
|
|
Model Number
|
10HS10412C
|
|
HP
|
1
|
|
Stages
|
16
|
|
Volts
|
230
|
|
Wire
|
3
|
|
Phase
|
1
|
|
Discharge
|
1-1/4"
|
|
Hz
|
60
|
|
GPM (Best Efficiency)
|
10
|
|
Motor
|
4"
|
|
Centripro Motor (included)
|
M10412
|
|
Control Box (Included with 3-wire models)
|
CB10412
|
|
Optional wrap around suction strainer
|
7K3356
|
|
Additional Specs
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
