Goulds Pumps

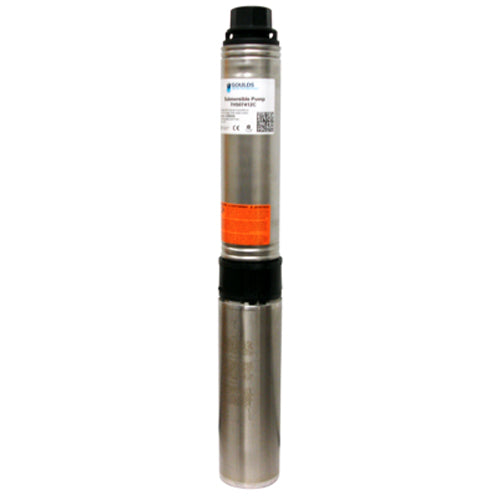

10HS07412C Goulds Pumps 4" Submersible Pump and Motor Package (3/4 HP, 14 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)
10HS07412C Goulds Pumps 4" Submersible Pump and Motor Package (3/4 HP, 14 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge)
SKU:10HS07412C
Precio habitual
$816.18 USD
Precio habitual
$1,338.00 USD
Precio de oferta
$816.18 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Goulds Pumps 10HS07412C, 4" Submersible Well Pumps with Motor and Control Box , 3/4 HP, 14 Stages, 230 Volts, 3 Wire, 1 Phase, 1-1/4" Discharge,
| Applications | |
| The Goulds HS series 4" submersible pump features top quality materials and construction to provide reliable and efficient service. This pump is powered by a CentriPro 4" motor for dependable operation and long service life. | |
| Features | |
| Powered by CentriPro 4" motors for dependable operation and long service life. | |
| Built in Check Valve screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring loaded, o-ring poppet design for positive seal in all conditions. | |
| Nylon motor adapter for strength and corrosion resistance. | |
| Stainless steel hex design shafts, shaft couplings, casings and stage bowls inhibit corrosion. | |
| Noryl engineered composite impellers for abrasion resistance and durability. | |
| Lexan engineered composite diffusers are abrasion resistant. | |
| All engineered composite components are non-toxic, non-leaching, FDA compliant materials. | |
| Goulds Water Technology field proven floating impeller stack design for superior sand and abrasive handling and durability. | |
| Quad Lock Technology: 4 Roll Formed grooves provide durability and strength, tested to exceed strength of poly and PVC pipes. | |
| Complete pump/motor assemblies are CSA listed, CSA/CUS approved motors are available in 2-wire and 3-wire single phase designs. | |
| Maximum Allowable Pressure - 300 PSI | |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
10HS07412C
|
|
Type
|
4" Submersible Well Pumps with Motor and Control Box
|
|
Series
|
HS Series
|
|
Model Number
|
10HS07412C
|
|
HP
|
3/4
|
|
Stages
|
14
|
|
Volts
|
230
|
|
Wire
|
3
|
|
Phase
|
1
|
|
Discharge
|
1-1/4"
|
|
Hz
|
60
|
|
GPM (Best Efficiency)
|
10
|
|
Motor
|
4"
|
|
Centripro Motor (included)
|
M07412
|
|
Control Box (Included with 3-wire models)
|
CB07412
|
|
Optional wrap around suction strainer
|
7K3356
|
|
Additional Specs
|
See Support Documents
|
|
