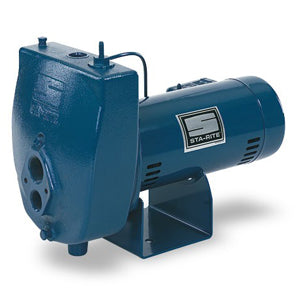

10HL Berkeley Cast Iron Convertible Jet Pumps (1 HP, 1-1/4" Suction, 1" Discharge, 1" Drive, 115/230 Voltage)

Berkeley 10HL, Cast iron, self-priming convertible jet pumps Type, HL Series, 1 HP, 1-1/4" Suction, 1" Discharge, 1" Drive, 115/230 Voltage,

Applications
The ProJet HL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 1 HP models. The ProJet HL convertible jets utilize built-in regulators offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages. APPLICATIONS Water systems and sprinkling for homes, farms and cottages.
Features
Quality Construction: Close-grained cast iron pump body is a rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Pressure Switch: High quality, cut-in and differential pressure setting are adjustable.
Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.

Specifications
Brand	Berkeley
Catalog Number	10HL
Type	Cast iron, self-priming convertible jet pumps
Series	HL
HP	1
Suction	1-1/4"
Discharge	1"
Drive	1"
Voltage	115/230
Body and Seal Plate	Close-grained cast iron
Impeller	High-strength Noryl
Diffuser	Reinforced polypropylene with brass wear ring
Base	Steel, 12 gauge
Max. Inlet Pressure	50 PSI
Pressure Switch Pre-Set	30-50 PSI
Pressure Gauge	0-100 PSI
Suction Ports	Suction-over-Drive
