U.S. Motors

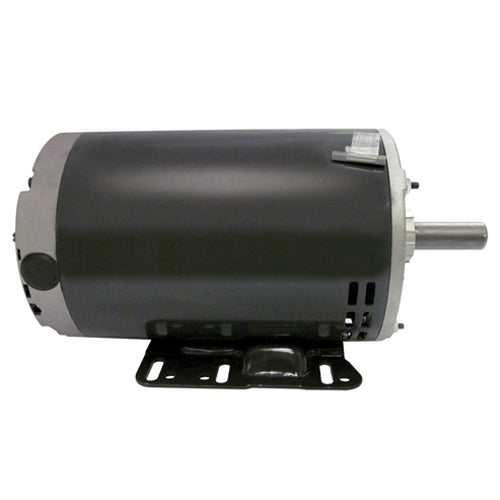

1089 US Motor Commercial Belted Fan & Blower Motor (3HP, 1725 RPM, 3 Phase, 56 Frame)
1089 US Motor Commercial Belted Fan & Blower Motor (3HP, 1725 RPM, 3 Phase, 56 Frame)
SKU:1089
Precio habitual
$604.77 USD
Precio habitual
Precio de oferta
$604.77 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
1089 US Motor (3HP, 1725 RPM, 3 Phase, 56 Frame)
| Model_Number: | P063WNG4795015B |
| CAT # | 1089 |
| PRODUCT NAME: | 3 HP - - 1725 |
| PHASETYPE: | 3_PHASE |
| HORSEPOWER: | 3 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 575 |
| VOLTS : | 575 |
| FRME : | 56 |
| STATOR DIAMETER: | 6.3 |
| STACK: | 4.25 |
| MOTOR TYPE: | FHP |
| SHIPPING WEIGHT: | 48 |
| BREAKDOWN TORQUE: | 465.8 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 302.6 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| LOCKED ROTOR AMPS: | 17.78 |
