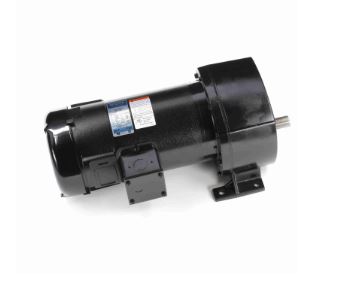

108707.00 Leeson Motor Parallel Shaft Gearmotor (.50 HP, 90 V, 18 RPM, 48Y Frame, TEFC)
108707.00 Leeson Motor Parallel Shaft Gearmotor (.50 HP, 90 V, 18 RPM, 48Y Frame, TEFC)
SKU:108707
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
108707.00 Leeson Motor Parallel Shaft Gearmotor (.50 HP, 90 V, 18 RPM, 48Y Frame, TEFC)
- Performance matched for continuous duty service.
- Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
- Heavy duty industrial oil seals keep lubricant in and dirt out.
- All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.
| Output HP: | 0.50 Hp | Output KW: | 0.37 kW |
| Voltage: | 90 V | Speed: | 18 rpm |
| Service Factor: | 1 | Frame: | 48Y |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | No Protection |
| Efficiency: | 66.9 % | Ambient Temperature: | 40 °C |
| Current: | 5.0 A | Duty: | Continuous |
| Insulation Class: | F | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Y | CE: | N |
