Barnes Pumps

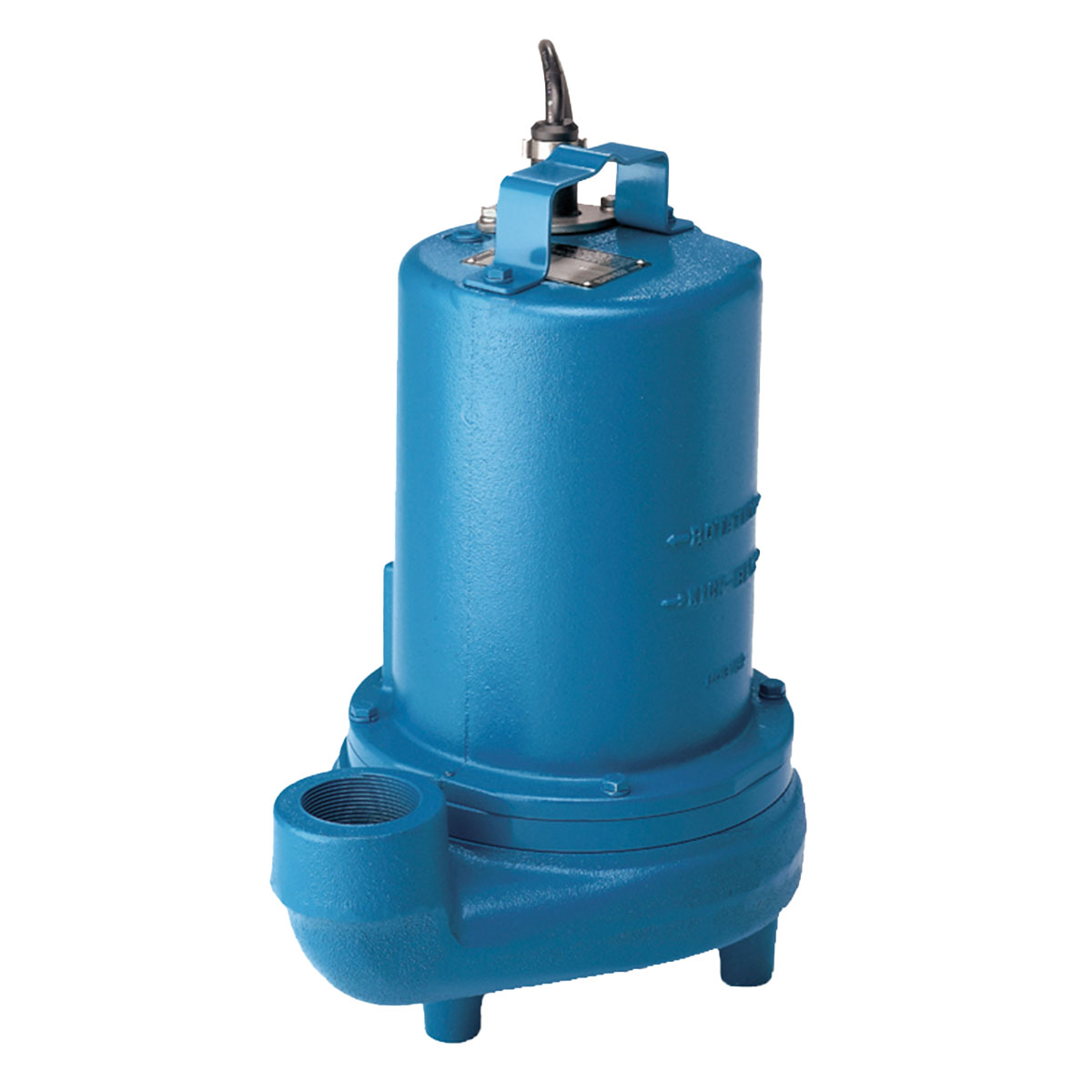

105079 Barnes Submersible Effluent Pump (EH1552L, 1.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)

Name: 105079 Barnes Submersible Effluent Pump (EH1552L, 1.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)
Brand: Barnes Pumps
SKU: 105079
Availability: InStock

SKU:105079

$0.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Barnes 105079, Submersible Effluent Pumps Series EH-L Series, EH1552L Catalog Number, 1.5 HP, 600/3 VOLT/PH, 2" NPT Discharge (In.)

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.

Features
Cast Iron Construction.
Polypropylene Impeller.

Specifications
Brand	Barnes
Part Number	105079
Type	Effluent Pump
Series	Submersible Effluent Pumps Series EH-L
Catalog Number	EH1552L
HP	1.5
VOLT/PH	600/3
Hz	60
Discharge (In.)	2" NPT
Automatic	No
RPM (Nom)	3450
NEMA START CODE	K
FULL LOAD AMPS	2.7
LOCKED ROTOR AMPS	11.6
CORD SIZE	14/4
CORD TYPE	SOW
CORD O.D inch (mm)	0.57 (14.50)
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Notes

Questions about this product? Contact our team!
Product images may be generic.
