Barnes Pumps

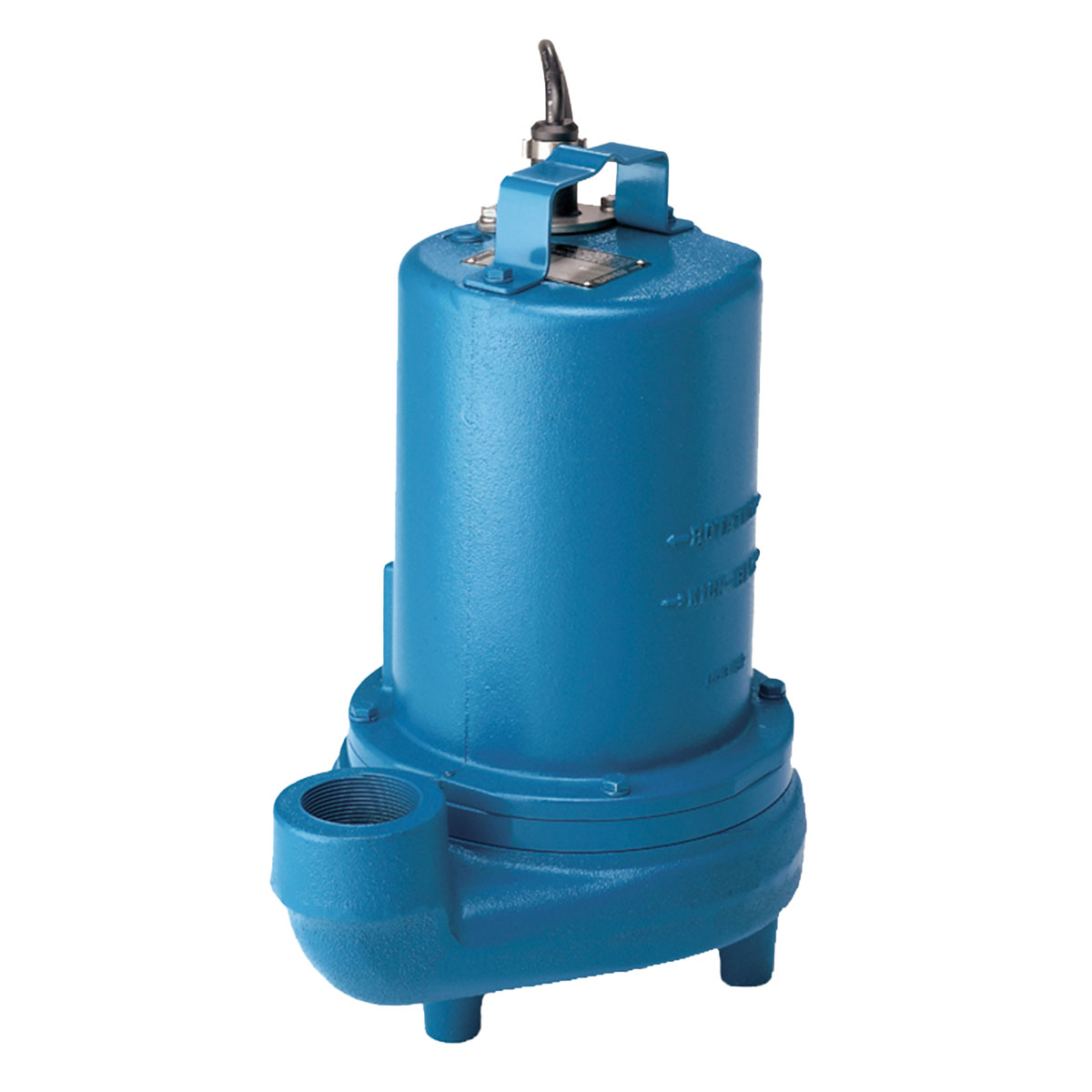

105071 Barnes Submersible Effluent Pump (EH1052L, 1 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
105071 Barnes Submersible Effluent Pump (EH1052L, 1 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:105071
Precio habitual
$1,878.67 USD
Precio habitual
$2,818.00 USD
Precio de oferta
$1,878.67 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Barnes 105071, Submersible Effluent Pumps Series EH-L Series, EH1052L Catalog Number, 1 HP, 600/3 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105071 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pumps Series EH-L |
Catalog Number |
EH1052L |
HP |
1 |
VOLT/PH |
600/3 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
L |
FULL LOAD AMPS |
2.8 |
LOCKED ROTOR AMPS |
8.7 |
CORD SIZE |
14/4 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.57 (14.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
