Barnes Pumps

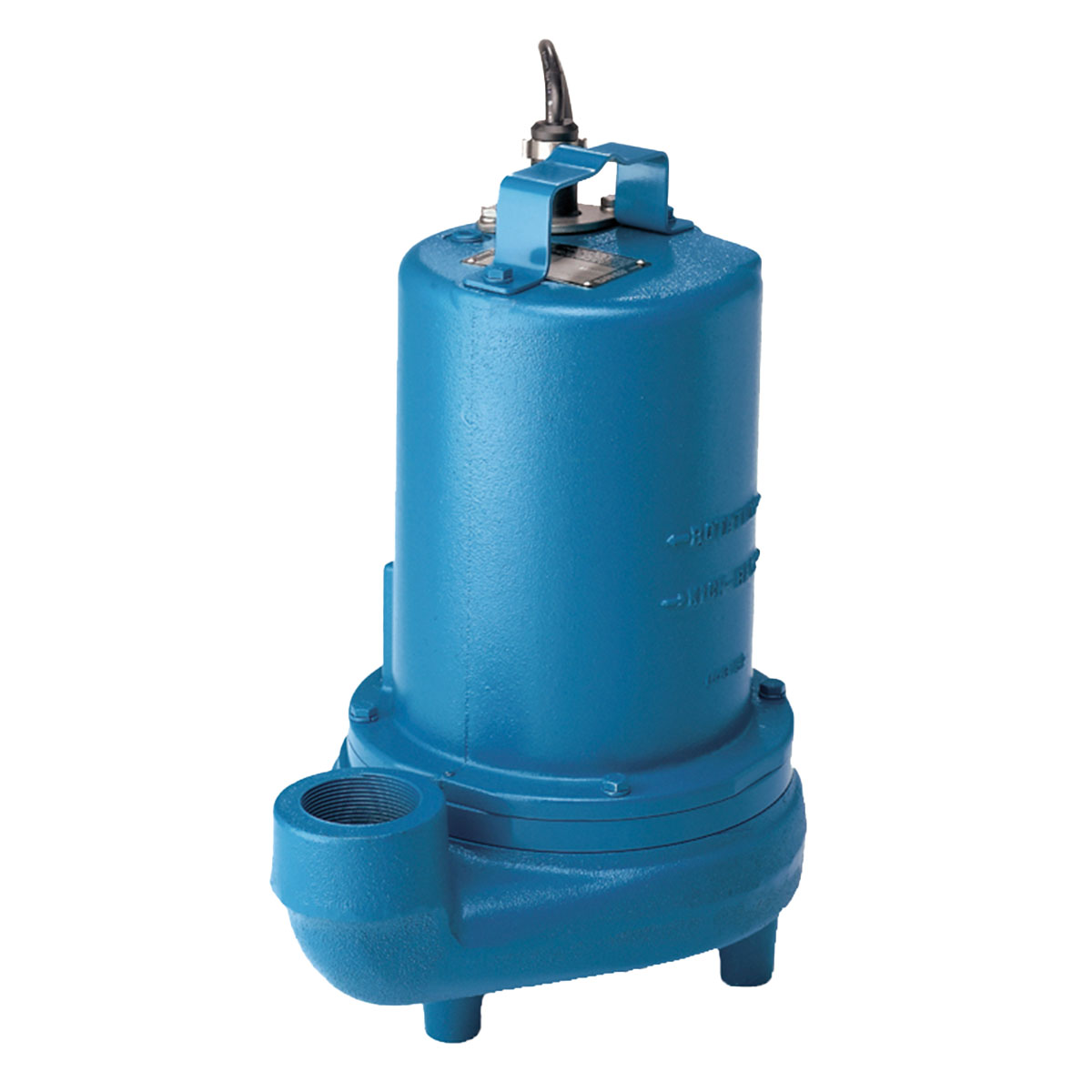

105062 Barnes Submersible Effluent Pump (EH552L, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)

105062 Barnes Submersible Effluent Pump (EH552L, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)

SKU:105062

Precio habitual $0.00 USD
Precio habitual Precio de oferta $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 105062, Submersible Effluent Pumps Series EH-L Series, EH552L Catalog Number, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge (In.)
Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.
Features
Cast Iron Construction.
Polypropylene Impeller.

Specifications

Brand
Barnes
Part Number
105062
Type
Effluent Pump
Series
Submersible Effluent Pumps Series EH-L
Catalog Number
EH552L
HP
0.5
VOLT/PH
600/3
Hz
60
Discharge (In.)
2" NPT
Automatic
No
RPM (Nom)
3450
NEMA START CODE
T
FULL LOAD AMPS
1.7
LOCKED ROTOR AMPS
8.7
CORD SIZE
14/4
CORD TYPE
SOW
CORD O.D inch (mm)
0.57 (14.50)
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
