Barnes Pumps

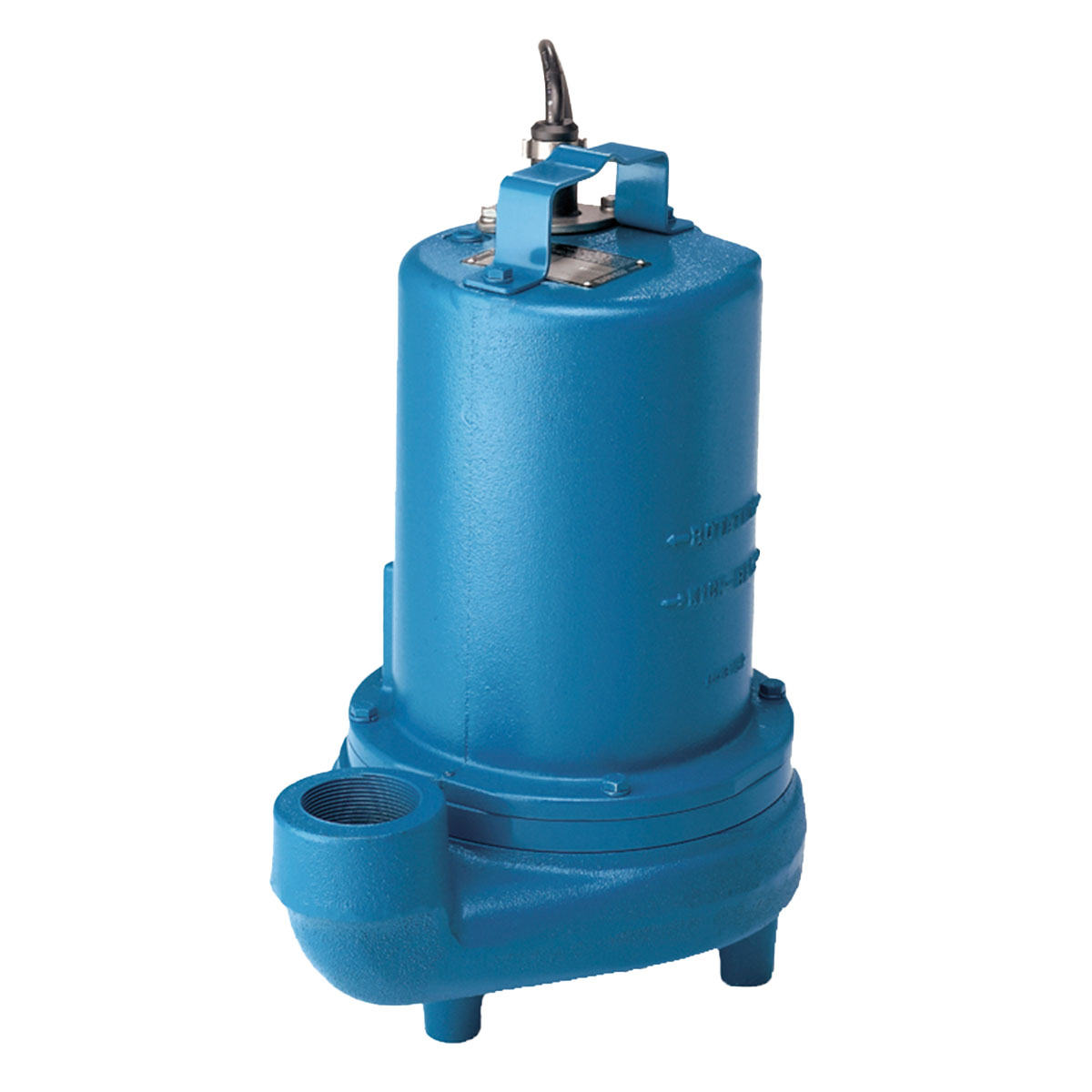

105059 Barnes Submersible Effluent Pump (EH522L, 0.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
105059 Barnes Submersible Effluent Pump (EH522L, 0.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
SKU:105059
Precio habitual
$1,466.00 USD
Precio habitual
$2,199.00 USD
Precio de oferta
$1,466.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Barnes 105059, Submersible Effluent Pumps Series EH-L Series, EH522L Catalog Number, 0.5 HP, 240/1 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105059 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pumps Series EH-L |
Catalog Number |
EH522L |
HP |
0.5 |
VOLT/PH |
240/1 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
E |
FULL LOAD AMPS |
4.9 |
LOCKED ROTOR AMPS |
10.2 |
CORD SIZE |
14/3 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.53 (13.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
