Bell & Gossett

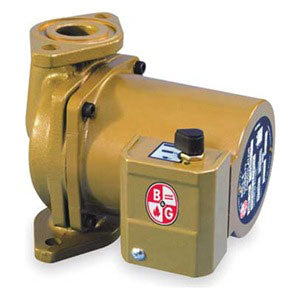

103401LF Bell & Gossett NBF-36 Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 35.5 GPM @ 5', Bronze)

103401LF Bell & Gossett NBF-36 Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 35.5 GPM @ 5', Bronze)

[COUNT] shoppers are looking at this right now

103401LF

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Bell & Gossett 103401LF, NBF-36 , 1 Phase, 115V Volts, 3 Speeds, 150 Max PSI, 35.5 GPM @ 5', 27.5 GPM @ 10', Open Loop , Bronze , Maintenance Free B&G Circulator

Applications
A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Residential or light commercial potable or heating applications.
Features
High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Backed by B&Gs representatives and a great 3-year warranty
Intended for potable water
Contains less than 0.25% lead content on wetted surfaces.

Tech Specs

Brand
Bell & Gossett
Model Number
103401LF
Model Number
NBF-36
Type
Wet Rotor, Maintenance Free Circulator
B&G Series
Lead Free Bronze Circulator
Watts
270
Phase
1
Volts
115V
F.L. Amps
2.3
RPM
3300
Speeds
3
Max PSI
150
Max Operating Temp.
225 F
GPM @ 5'
35.5
GPM @ 10'
27.5
GPM @ 15'
23
GPM @ 20'
17.5
GPM @ 25'
12.5
System Type
Open Loop
Pump Body
Bronze
Impeller
Noryl
Shaft
Ceramic
Bearings
Carbon
CONNECTION
Flange 3/4, 1, 1-1/4, 1-1/2
Shipping Weight lbs.
13.1
Pump Curve and Notes
See NBF Pump Literature

Support Documents (pdf)

NBF Pump Literature
