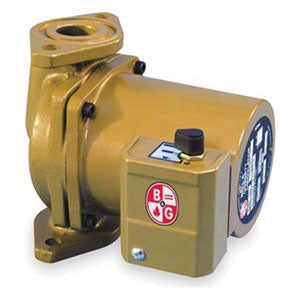

103261LF Bell & Gossett NBF-12U/LW Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 10 GPM @ 5', Bronze)
103261LF Bell & Gossett NBF-12U/LW Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 10 GPM @ 5', Bronze)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:103261LF
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Bell & Gossett 103261LF, NBF-12U/LW , 1 Phase, 115V Volts, 1 Speeds, 150 Max PSI, 10 GPM @ 5', 3 GPM @ 10', Open Loop , Bronze , Maintenance Free B&G Circulator
| Applications | |
| A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Residential or light commercial potable or heating applications. | |
| Features | |
| High starting torque provides years of trouble-free start-ups | |
| Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation | |
| Closed impeller design improves operating efficiency | |
| Backed by B&Gs representatives and a great 3-year warranty | |
| Intended for potable water | |
| Contains less than 0.25% lead content on wetted surfaces. | |
Tech Specs | |
Brand |
Bell & Gossett |
Model Number |
103261LF |
Model Number |
NBF-12U/LW |
Type |
Wet Rotor, Maintenance Free Circulator |
B&G Series |
Lead Free Bronze Circulator |
Watts |
55 |
Phase |
1 |
Volts |
115V |
F.L. Amps |
0.48 |
RPM |
2800 |
Speeds |
1 |
Max PSI |
150 |
Max Operating Temp. |
230 F |
GPM @ 5' |
10 |
GPM @ 10' |
3 |
GPM @ 15' |
- |
GPM @ 20' |
- |
GPM @ 25' |
- |
System Type |
Open Loop |
Pump Body |
Bronze |
Impeller |
Noryl |
Shaft |
Ceramic |
Bearings |
Carbon |
CONNECTION |
Union |
Shipping Weight lbs. |
9.3 |
Pump Curve and Notes |
See NBF Pump Literature |
Support Documents (pdf) | ||||
| NBF Pump Literature | ||||
