Bell & Gossett

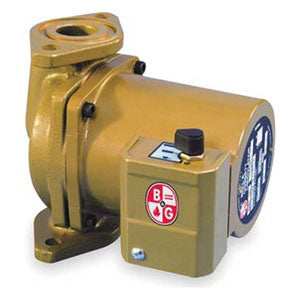

103257LF Bell & Gossett NBF-8S/LW Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 3.75 GPM @ 5', Bronze)

103257LF Bell & Gossett NBF-8S/LW Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 3.75 GPM @ 5', Bronze)

103257LF

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Bell & Gossett 103257LF, NBF-8S/LW , 1 Phase, 115V Volts, 1 Speeds, 150 Max PSI, 3.75 GPM @ 5', - GPM @ 10', Open Loop , Bronze , Maintenance Free B&G Circulator
Applications
A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Residential or light commercial potable or heating applications.
Features
High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Backed by B&Gs representatives and a great 3-year warranty
Intended for potable water
Contains less than 0.25% lead content on wetted surfaces.

Tech Specs

Brand
Bell & Gossett
Model Number
103257LF
Model Number
NBF-8S/LW
Type
Wet Rotor, Maintenance Free Circulator
B&G Series
Lead Free Bronze Circulator
Watts
39
Phase
1
Volts
115V
F.L. Amps
0.38
RPM
2800
Speeds
1
Max PSI
150
Max Operating Temp.
230 F
GPM @ 5'
3.75
GPM @ 10'
-
GPM @ 15'
-
GPM @ 20'
-
GPM @ 25'
-
System Type
Open Loop
Pump Body
Bronze
Impeller
Noryl
Shaft
Ceramic
Bearings
Carbon
CONNECTION
1/2" Sweat
Shipping Weight lbs.
9
Pump Curve and Notes
See NBF Pump Literature

Support Documents (pdf)

NBF Pump Literature
