Bell & Gossett

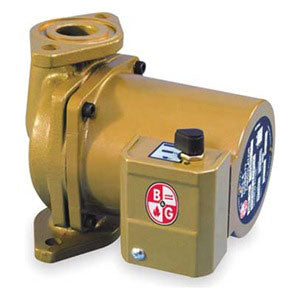

103252LF Bell & Gossett NBF-22 Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 15 GPM @ 5', Bronze)
103252LF Bell & Gossett NBF-22 Circulator Pump, Wet Rotor (1 Phase, 115V Volts, 15 GPM @ 5', Bronze)
SKU:103252LF
Precio habitual
$462.00 USD
Precio habitual
$1,039.50 USD
Precio de oferta
$462.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Bell & Gossett 103252LF, NBF-22 , 1 Phase, 115V Volts, 1 Speeds, 150 Max PSI, 15 GPM @ 5', 7.5 GPM @ 10', Open Loop , Bronze , Maintenance Free B&G Circulator
| Applications | |
| A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Residential or light commercial potable or heating applications. | |
| Features | |
| High starting torque provides years of trouble-free start-ups | |
| Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation | |
| Closed impeller design improves operating efficiency | |
| Backed by B&Gs representatives and a great 3-year warranty | |
| Intended for potable water | |
| Contains less than 0.25% lead content on wetted surfaces. | |
Tech Specs | |
Brand |
Bell & Gossett |
Model Number |
103252LF |
Model Number |
NBF-22 |
Type |
Wet Rotor, Maintenance Free Circulator |
B&G Series |
Lead Free Bronze Circulator |
Watts |
92 |
Phase |
1 |
Volts |
115V |
F.L. Amps |
0.8 |
RPM |
2940 |
Speeds |
1 |
Max PSI |
150 |
Max Operating Temp. |
230 F |
GPM @ 5' |
15 |
GPM @ 10' |
7.5 |
GPM @ 15' |
- |
GPM @ 20' |
- |
GPM @ 25' |
- |
System Type |
Open Loop |
Pump Body |
Bronze |
Impeller |
Noryl |
Shaft |
Ceramic |
Bearings |
Carbon |
CONNECTION |
Flange 3/4, 1, 1-1/4, 1-1/2 |
Shipping Weight lbs. |
9.5 |
Pump Curve and Notes |
See NBF Pump Literature |
Support Documents (pdf) | ||||
| NBF Pump Literature | ||||
