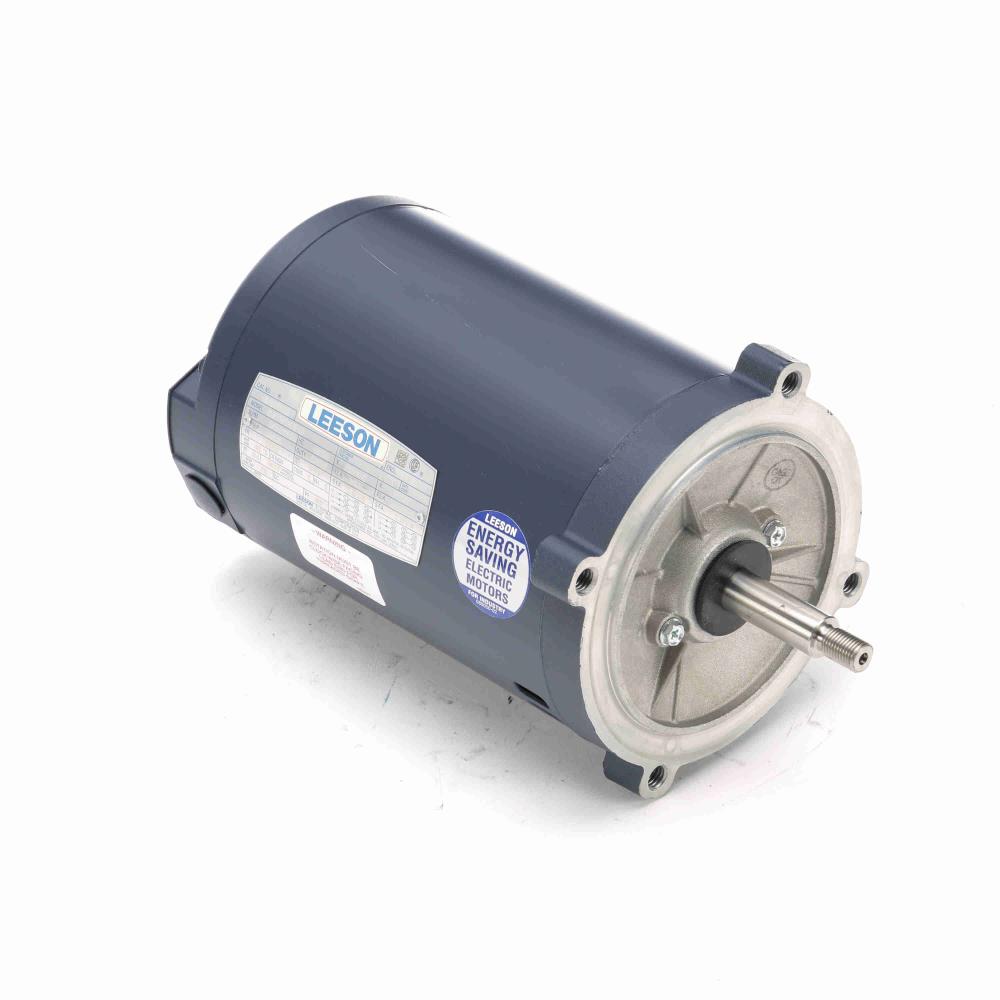

Leeson Motors 101638, Jet Pump, C4T34DC21 , 1 HP, S56J Frame, 3450RPM, 208-230/460V, DP
| Applications | |
| Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required. | |
| Features | |
| NEMA 56 C-Face mounting face | |
| Mechanically locked ball bearing on shaft-end, limits axial shaft movement | |
| Quiet operation through Super Hush flow-through ventilation system | |
| 416 stainless steel shafts | |
| Quick Connect terminals to reduce installation time | |
| Auto re-set protectors | |
| Stator windings impregnated with extra heavy varnish system | |
| High overload capacities provided by high service factor ratings | |
| Double-sealed ball bearings | |
| UL and C.S.A recognized | |
Specifications | |
Brand |
Leeson Motors |
Catalog Number |
101638 |
Type |
Leeson Electric Motor |
Series |
Jet Pump |
Model Number |
C4T34DC21 |
HP |
1 |
Frame |
S56J |
RPM |
3450RPM |
Voltage |
208-230/460V |
Enclosure |
DP |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
