Barnes Pumps

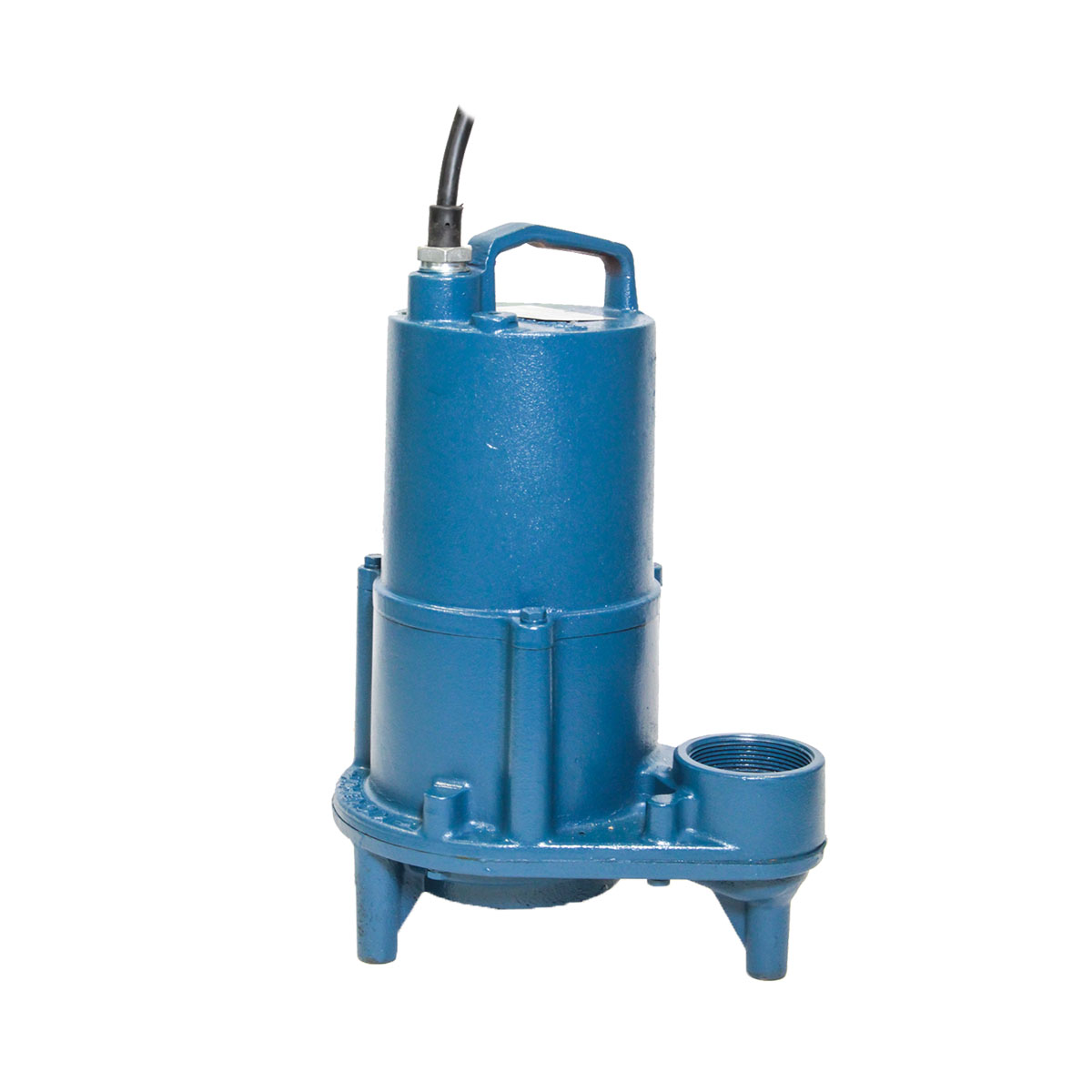

101298 Barnes Submersible Effluent Pump (EHV412,0.5 HP, 115/1 V/PH, 2" NPT Discharge, 3450 RPM)

Name: 101298 Barnes Submersible Effluent Pump (EHV412,0.5 HP, 115/1 V/PH, 2" NPT Discharge, 3450 RPM)
Brand: Barnes Pumps
SKU: 101298
Price: 632.20 USD
Availability: InStock

SKU:101298

$632.20 USD

~~$872.00 USD~~ $632.20 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Barnes 101298, Submersible Effluent Pump Series EHV Series, EHV412 Catalog Number, 0.5 HP, 115/1 V/PH, 2" NPT Discharge

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.

Features
Cast Iron Construction.
Vortex Cast Iron Impeller.

Specifications
Brand	Barnes
Part Number	101298
Type	Effluent Pump
Series	Submersible Effluent Pump Series EHV
Catalog Number	EHV412
HP	0.5
V/PH	115/1
Hz	60
Discharge	2" NPT
Automatic	No
RPM	3450
NEMA START CODE	H
FULL LOAD AMPS	6.4
LOCKED ROTORAMPS	19.6
CORD LENGTH	20 ft. (6m)
CORD SIZE	14/3
CORD TYPE	SJTOW
Warranty	1 Year
Notes	See Support Dcuments

Support Documents (pdf)

Notes

Questions about this product? Contact our team!
Product images may be generic.
