Goulds Pumps

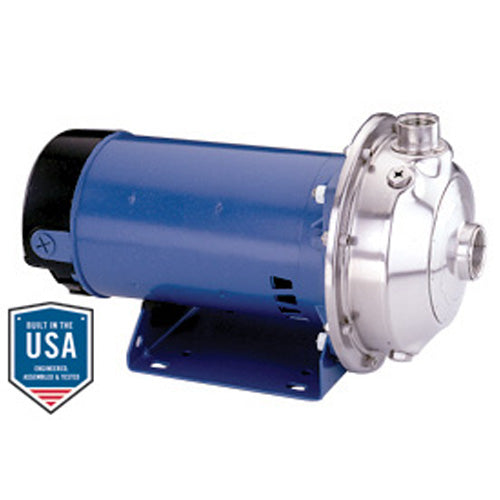

100MS1H5A6 Goulds Pumps Goulds Stainless Steel Centrifugal Pump (3 HP, 3/60/230-460 Driver, TEPE Enclosure, 6.13" Impeller, Stainless Steel)
100MS1H5A6 Goulds Pumps Goulds Stainless Steel Centrifugal Pump (3 HP, 3/60/230-460 Driver, TEPE Enclosure, 6.13" Impeller, Stainless Steel)
SKU:100MS1H5A6
Precio habitual
$1,749.66 USD
Precio habitual
$3,040.00 USD
Precio de oferta
$1,749.66 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Goulds Pumps 100MS1H5A6, End Suction Stainless Steel Centrifugal Pumps Type, MCS Series, 3 HP, 3/60/230-460 Driver, TEPE Enclosure, 6.13" Impeller Size, Stainless Steel Material,
| Applications | |
| Goulds MCS Series Stainless Steel Centrifugal pumps are specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted or all bronze construction. Applications include: water circulation, booster service, liquid transfer, spray system, chillers, washers / cleaning systems, injection molding cooling, reverse osmosis, air scrubbers, heat exchangers, filtration systems, jockey pumps, OEM applications, general water services. | |
| Features | |
| Superior Materials of Construction: AISI 304 and 316L stainless steel liquid handling components for corrosion resistance, quality appearance, and improved strength and ductility. | |
| High Efficiency Impeller: Enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment. | |
| Casing: Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. | |
| Mechanical Seal: Standard John Crane seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts. Optional high temperature and chemical duty seals available. | |
| Motors: NEMA standard open drip-proof, totally enclosed fan cooled enclosures. Ruggedball bearing design for continuous duty under all operating conditions. | |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
100MS1H5A6
|
|
Type
|
End Suction Stainless Steel Centrifugal Pumps
|
|
Series
|
MCS
|
|
HP
|
3
|
|
Driver
|
3/60/230-460
|
|
Enclosure
|
TEPE
|
|
Impeller Size
|
6.13"
|
|
Material
|
Stainless Steel
|
|
Pump Size
|
1 x 1-1/4 - 6
|
|
Suction
|
1.25"
|
|
Discharge
|
1"
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
Compartir
- Questions about this product? Contact our team!
- Product images may be generic.
