Goulds Pumps

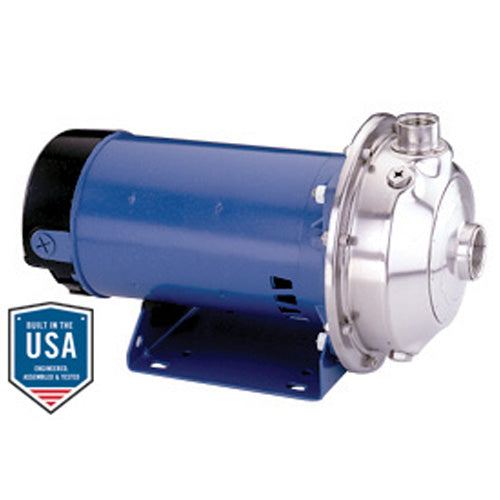

100MS1E5D4 Goulds Pumps Goulds Stainless Steel Centrifugal Pump (1 HP, 3/60/230-460 Driver, TEFC Enclosure, 4.75" Impeller, Stainless Steel)
100MS1E5D4 Goulds Pumps Goulds Stainless Steel Centrifugal Pump (1 HP, 3/60/230-460 Driver, TEFC Enclosure, 4.75" Impeller, Stainless Steel)
SKU:100MS1E5D4
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds Pumps 100MS1E5D4, End Suction Stainless Steel Centrifugal Pumps Type, MCS Series, 1 HP, 3/60/230-460 Driver, TEFC Enclosure, 4.75" Impeller Size, Stainless Steel Material,
| Applications | |
| Goulds MCS Series Stainless Steel Centrifugal pumps are specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted or all bronze construction. Applications include: water circulation, booster service, liquid transfer, spray system, chillers, washers / cleaning systems, injection molding cooling, reverse osmosis, air scrubbers, heat exchangers, filtration systems, jockey poumps, OEM applications, general warer services. | |
| Features | |
| Superior Materials of Construction: AISI 304 and 316L stainless steel liquid handling components for corrosion resistance, quality appearance, and improved strength and ductility. | |
| High Efficiency Impeller: Enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment. | |
| Casing: Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. | |
| Mechanical Seal: Standard John Crane seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts. Optional high temperature and chemical duty seals available. | |
| Motors: NEMA standard open drip-proof, totally enclosed fan cooled enclosures. Ruggedball bearing design for continuous duty under all operating conditions. | |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
100MS1E5D4
|
|
Type
|
End Suction Stainless Steel Centrifugal Pumps
|
|
Series
|
MCS
|
|
HP
|
1
|
|
Driver
|
3/60/230-460
|
|
Enclosure
|
TEFC
|
|
Impeller Size
|
4.75"
|
|
Material
|
Stainless Steel
|
|
Pump Size
|
1 x 1-1/4 - 6
|
|
Suction
|
1.25"
|
|
Discharge
|
1"
|
|
Notes
|
See Support Documents
|
|
