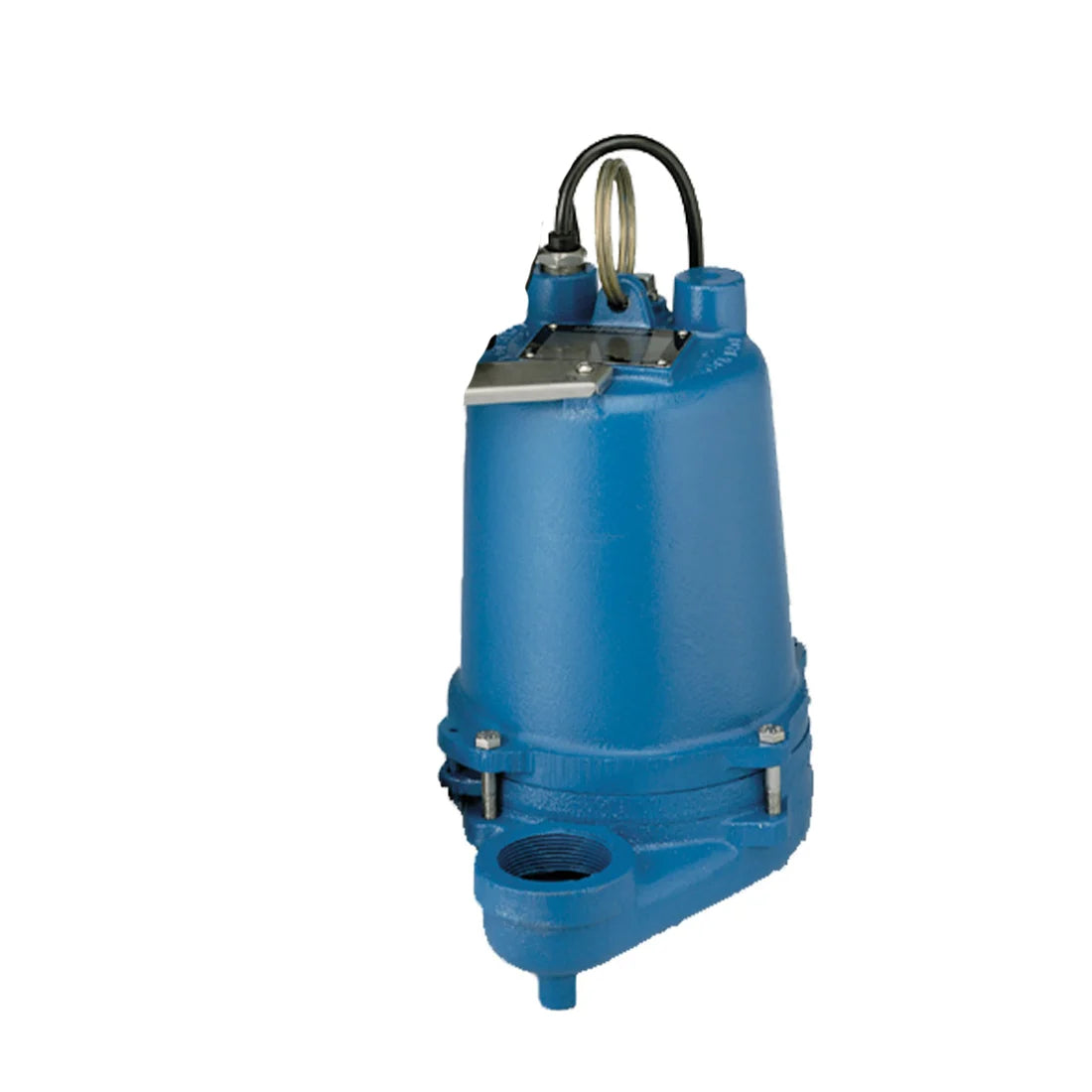

096737 Barnes Effluent Pump (BP314HT, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage, 2" Vertical Discharge)
096737 Barnes Effluent Pump (BP314HT, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage, 2" Vertical Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:96737
Precio habitual
$1,337.33 USD
Precio habitual
$2,006.00 USD
Precio de oferta
$1,337.33 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Barnes 096737, BP314HT Series, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 0.75 Max Solids (Inches), 115 Voltage
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN HIGH TEMPERATURE SEPTIC TANK/EFFLUENT APPLICATIONS | |
| Features | |
| High impact tank constructed with ABS material | |
| Three inlet openings | |
| 3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump) | |
| Removeable check valve | |
| Built-in safety switch (BC-20S only) | |
| 150F maximum fluid temperature | |
Specifications | |
Brand |
Barnes |
Catalog Number |
096737 |
Type |
Effluent Pump |
Series |
BP314HT |
HP |
1/3 |
Phase |
Single |
Hz |
60 |
RPM |
1750 |
Max Solids (Inches) |
0.75 |
Discharge |
2" NPT, Female, Vertical |
Voltage |
115 |
Full Load Amps |
8 |
Casing |
Cast Iron |
Impeller |
Bronze |
Shaft |
Stainless Steel |
Stages |
1 |
GPM |
45 |
Max Flow |
70 |
Max Head |
30 |
Liquid Temperature |
200F (93C) Continuous |
Cord Size |
14/3 |
Support Documents (pdf) | ||||
