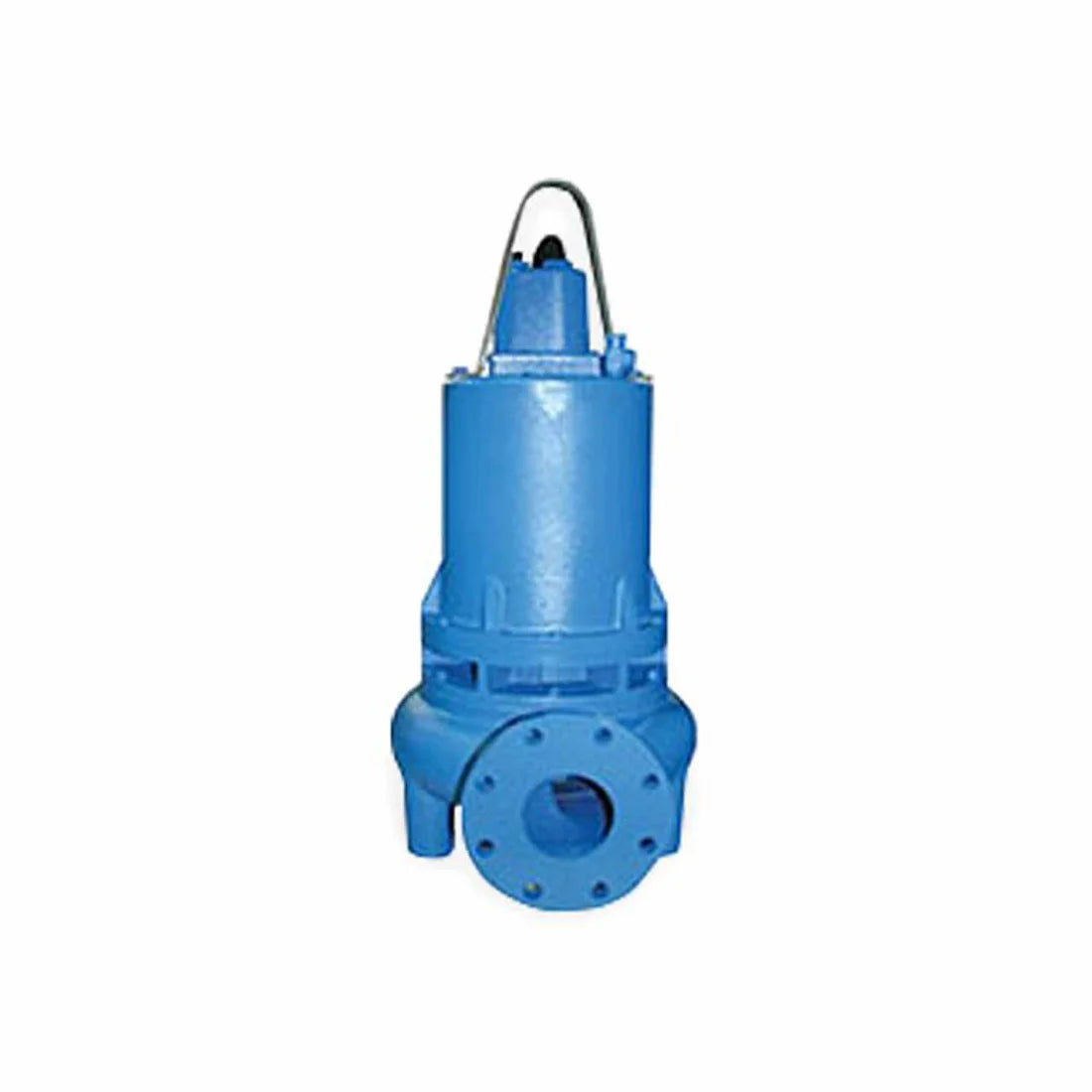

084647 Crane Barnes 4SE-HL Series Sewage Pump (4SE15044HL Model, 15 HP, 460 Volt, 3 Phase, 4" Flanged Horizontal Discharge, 800 GPM Max, 90' Max Head, 40' Cord, Manual, Double Seal)

084647 Crane Barnes 4SE-HL Series, Sewage Pump (4SE15044HL Model, 15 HP, 460 Volt, 3 Phase, 4" Flanged Horizontal Discharge, 800 GPM Max, 90' Max Head, 40' Cord, Manual, Double Seal)

This is a submersible, non-clog sewage pump designed for typical raw sewage applications. This pump has a double seal and can handle spherical solids up to 3 inch in diameter. It has a torque curved, oil filled, squirrel cage induction motor.

Features

- 4" 125lb, flanged horizonal discharge
- Motor housing, and seal plate are cast iron ASTM A-48, Class 30
- Volute is cast iron ASTM A-48, Class 30, with bronze wear ring
- Impeller has a 2 vane enclosed design with pump out vanes on back side
- 416 stainless steel shaft
- Buna-N square rings and diaphragm
- 300 series stainless steel hardware
- 304 stainless steel lifting bail
- Double mechanical seal design made of Carbon/Ceramic/Buna-N with an oil filled pressure equalized reservoir
- Single row, oil lubricated, radial load upper and lower ball bearings
- Moisture sensor (Normally Open) and temperature sensor (Normally Closed) require relay in control panel
- 40 ft. cord with epoxy sealed housing with secondary pressure grommet for sealing and strain relief
