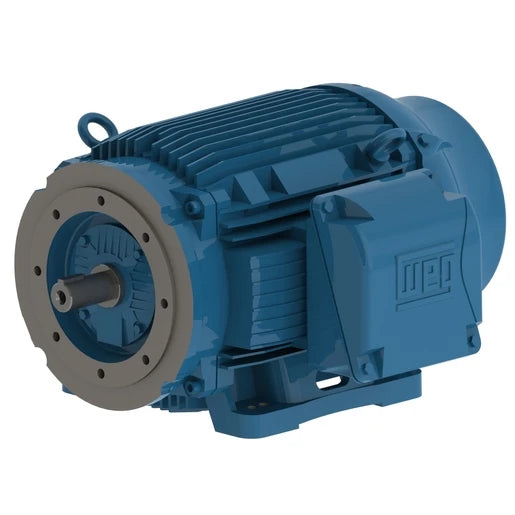

07518ET3E365TSCF2-W2 WEG Motor W22 NEMA Premium Efficiency (75 HP, 4P, 364/5TSC, 3Phase, 230/460//380V, 60//50 Hz, IC411, TEFC, Foot-mounted)

07518ET3E365TSCF2-W2 WEG Motor W22 NEMA Premium Efficiency (75 HP, 4P, 364/5TSC, 3Phase, 230/460//380V, 60//50 Hz, IC411, TEFC, Foot-mounted)

[COUNT] shoppers are looking at this right now

07518ET3E365TSCF2-W2

$8,141.72 USD
$9,148.00 USD $8,141.72 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

07518ET3E365TSCF2-W2 WEG Motor W22 NEMA Premium Efficiency (75 HP, 4P, 364/5TSC, 3Phase, 230/460//380V, 60//50 Hz, IC411, TEFC, Foot-mounted)

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Frame 364/5TSC
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 174/87.2 A
L. R. Amperes 1116/558 A
LRC 6.4x(Code G)
No load current 66.0/33.0 A
Rated torque 221 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 946 lb
