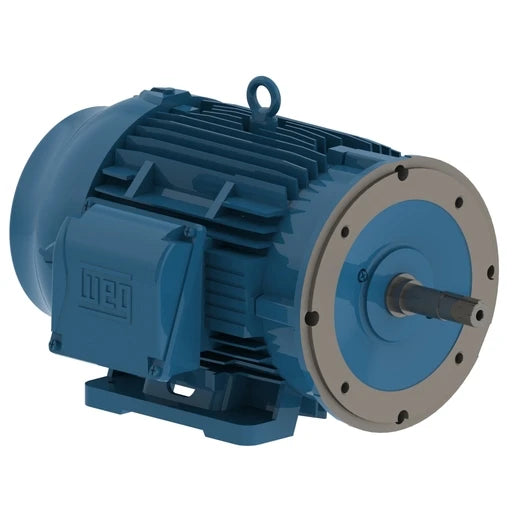

06036ET3E326JM-W22 WEG Close Coupled Pump Motor (13506430, 60 HP, 2P, 324/6JM Frame, 208-230/460 Volt, 60 hz, TEFC Enclosure, Foot-Mounted)
06036ET3E326JM-W22 WEG Close Coupled Pump Motor (13506430, 60 HP, 2P, 324/6JM Frame, 208-230/460 Volt, 60 hz, TEFC Enclosure, Foot-Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:06036ET3E326JM-W22
Precio habitual
$6,852.11 USD
Precio habitual
$7,699.00 USD
Precio de oferta
$6,852.11 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
06036ET3E326JM-W22 WEG Close Coupled Pump Motor (60 HP, 2P, 324/6JM Frame, 208-230/460 Volt, 60 hz, TEFC Enclosure, Foot-Mounted)
| Frame | 324/6JM |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3570 rpm |
| Slip | 0.83 % |
| Rated voltage | 208-230/460 V |
| Rated current | 155-140/70.2 A |
| L. R. Amperes | 1209-1092/548 A |
| LRC | 7.8x(Code J) |
| No load current | 37.8-47.6/23.8 A |
| Rated torque | 88.3 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 300 % |
| Locked rotor time | 23s (cold) 13s (hot) |
