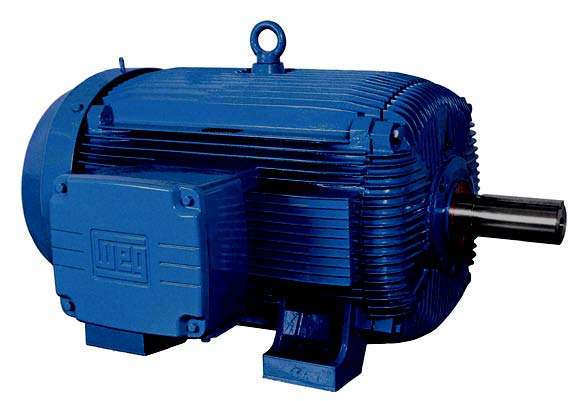

05009ES3EKD404T WEG Motor
Applications
Primary/secondary/tertiary crusher, Jaw crushers, Roller crushers, Vertical Shaft Impact crushers, Gyrathory crushers, Cage mills, Cone crushers, Horizontal Shaft Impact crushers, Hammermills, Grizzly feeders. Also recommended for belt feeders and belt conveyors.
Features
General Purpose Motor, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
05009ES3EKD404T
HP
50 HP
RPM
880
FRAME
404T
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
961
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
135-122/61.2 A
LOCKED ROTOR CURRENT IL IN
8.6
LOCKED ROTOR CURRENT
1050/526 A
LOCKED ROTOR TORQUE
2.4
BREAKDOWN TORQUE
3
EFFICIENCY 50
90.2
EFFICIENCY 75
91
EFFICIENCY 100
91.1
POWER FACTOR 50
0.65
POWER FACTOR 75
0.76
POWER FACTOR 100
0.83
SERVICE FACTOR
1.15
INERTIA KGM2
1.2238 kgm
INERTIA SQ FT
29.040 sq.ft.
LOCKED ROTOR TIME
11 s
NOISE LEVEL
62 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
57.4/28.7 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
399 Nm
FULL LOAD TORQUE FT
294 .ft
SLIP
0.0222
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
NU-316 C3
BEARINGS N D E
6314 C3
REGREASING INTERVAL D E
13839 h
REGREASING INTERVAL N D E
17353 h
GREASE AMOUNT D E
34 g
GREASE AMOUNT N D E
27 g
