WEG

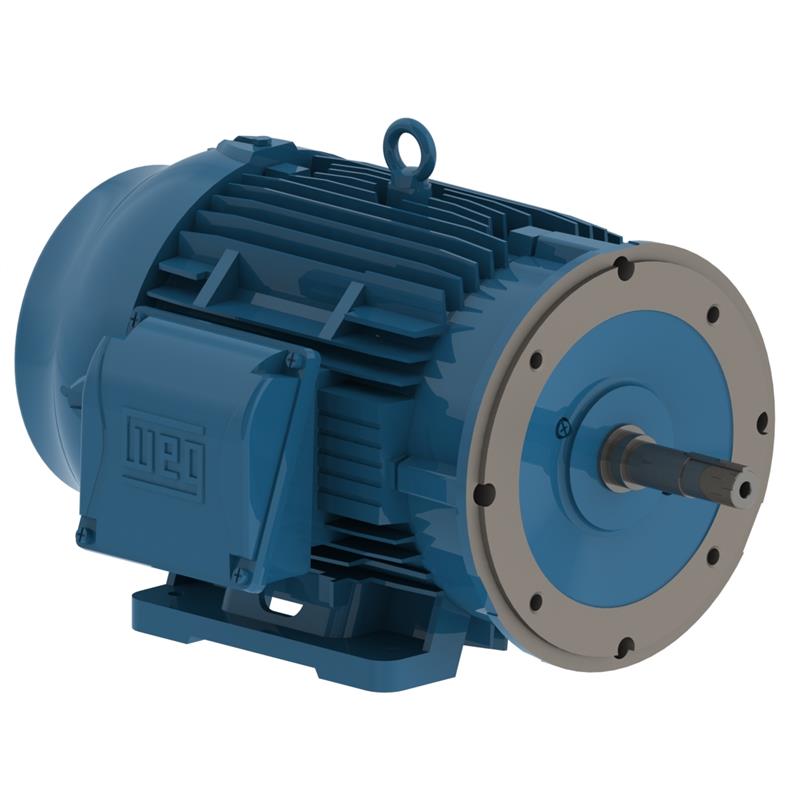

02536ET3E256JM-W22 WEG Motor (25 HP 2P 254/6JM 3Ph 208-230/460V)
02536ET3E256JM-W22 WEG Motor (25 HP 2P 254/6JM 3Ph 208-230/460V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:02536ET3E256JM-W22
Precio habitual
$2,875.59 USD
Precio habitual
$3,231.00 USD
Precio de oferta
$2,875.59 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
02536ET3E256JM-W22 WEG Motor (25 HP 2P 254/6JM 3Ph 208-230/460V)
02536ET3E256JM-W22 WEG Motor (25 HP 2P 254/6JM 3Ph 208-230/460V)
02536ET3E256JM-W22 WEG Motor (25 HP 2P 254/6JM 3Ph 208-230/460V)
| Frame | 254/6JM |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Rated voltage | 208-230/460 V |
| Rated current | 62.2-56.3/28.1 A |
| L. R. Amperes | 398-360/180 A |
| LRC | 6.4x(Code G) |
| No load current | 11.6-13.5/6.75 A |
| Rated torque | 37.3 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 229 % |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
