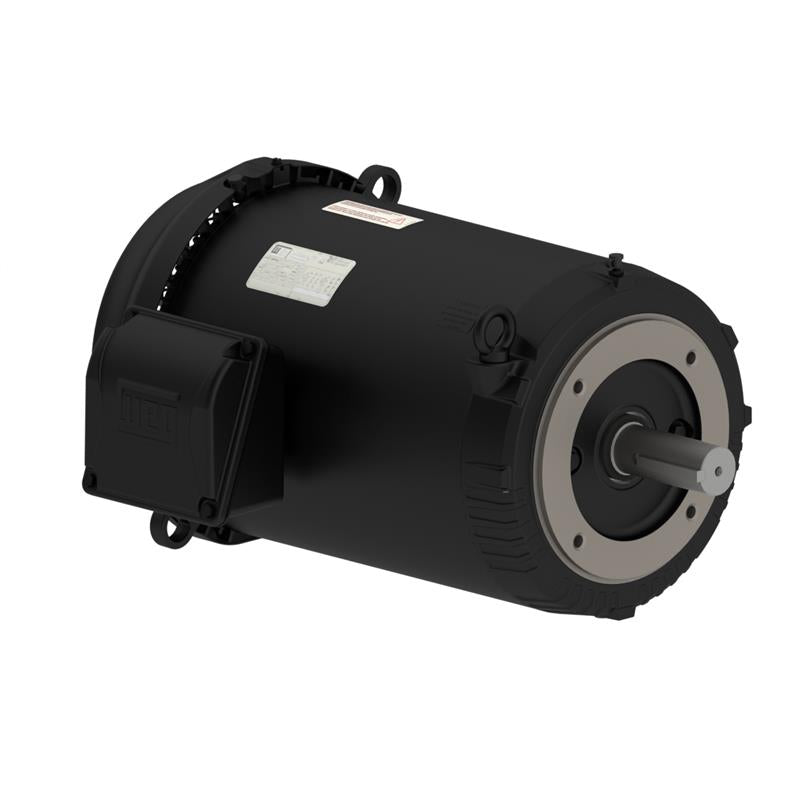

02036ET3ER256TC-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

02036ET3ER256TC-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

02036ET3ER256TC-S

$1,556.61 USD
$1,556.61 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 02036ET3ER256TC-S, 20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
02036ET3ER256TC-S
Type
General Purpose Motor
HP
20
RPM
3600
Phase
3
Frequency
60 Hz
Frame
254/6TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
91
FL Amps
22.7
Construction
Rolled Steel
"C" Dimensions
23.346
Drive End Flange Type
C-Face
Warranty
1 Year
