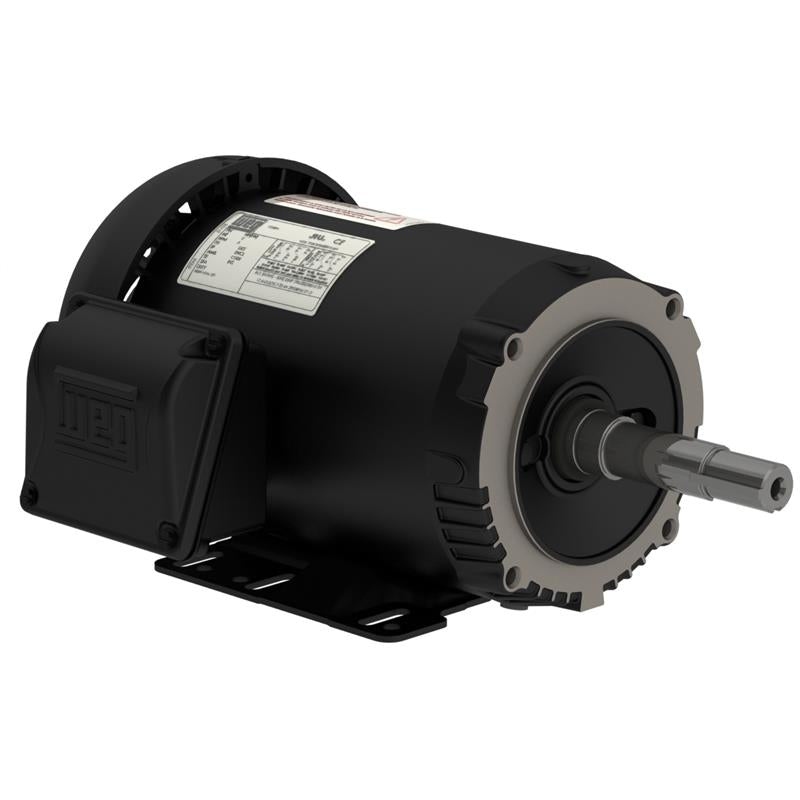

02018ET3H256JM-S WEG Close Coupled Pump Motor (20 HP, 3 Phase, 575 Voltage, TEFC Enclosure, 1800 RPM, 254/6JM Frame)
02018ET3H256JM-S WEG Close Coupled Pump Motor (20 HP, 3 Phase, 575 Voltage, TEFC Enclosure, 1800 RPM, 254/6JM Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:02018ET3H256JM-S
Precio habitual
$2,542.73 USD
Precio habitual
$2,857.00 USD
Precio de oferta
$2,542.73 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
WEG 02018ET3H256JM-S, Close-Coupled Pump Motors Type, 20 HP, 3 Phase, 575 Voltage, TEFC Enclosure, 1800 RPM, 254/6JM Frame,
| Applications | |
| High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| Regreasable ball bearings (Frames 254JM/JP and up) | |
| Gasketed conduit box | |
| Optimized ventilation system for cooler operation and reduced noise levels | |
| Solid base for reduced vibration levels | |
Specifications | |
Brand |
WEG |
Catalog Number |
02018ET3H256JM-S |
Type |
Close-Coupled Pump Motors |
HP |
20 |
Phase |
3 |
Voltage |
575 |
Enclosure |
TEFC |
RPM |
1800 |
Service Factor |
1 .15 |
Frame |
254/6JM |
FL Amps @ High |
19 .8 |
FL. Eff (%) |
92 .4 |
C Dimension (in) |
24 .843 |
Notes |
See Support Documents |
Support Documents (pdf) |
