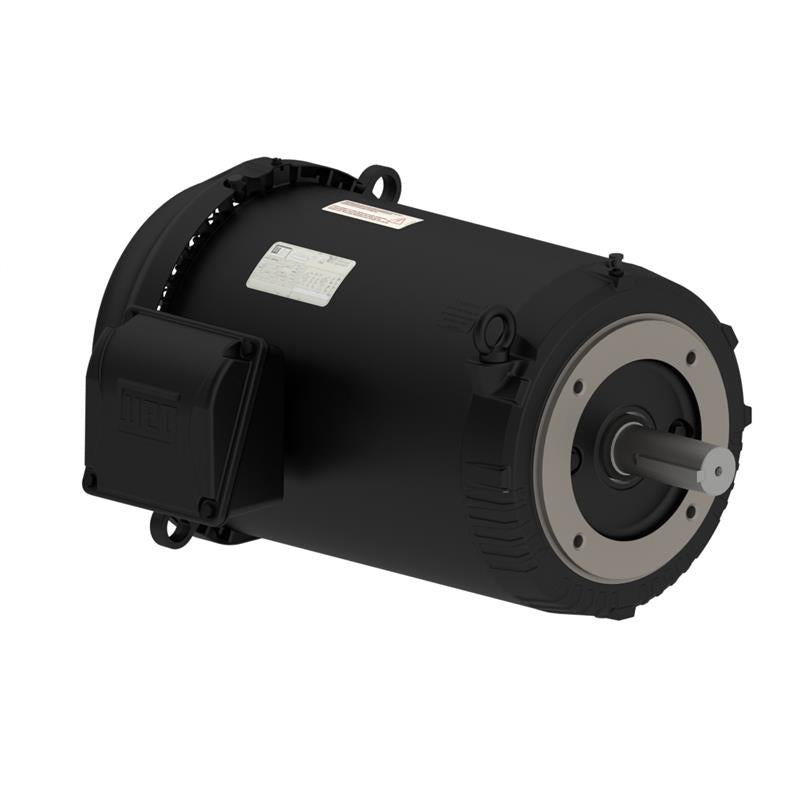

02018ET3ER256TC-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

02018ET3ER256TC-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

02018ET3ER256TC-S

$1,760.42 USD
$1,978.00 USD $1,760.42 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

WEG 02018ET3ER256TC-S, 20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
02018ET3ER256TC-S
Type
General Purpose Motor
HP
20
RPM
1800
Phase
3
Frequency
60 Hz
Frame
254/6TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
93
FL Amps
24.7
Construction
Rolled Steel
"C" Dimensions
23.346
Drive End Flange Type
C-Face
Warranty
1 Year
