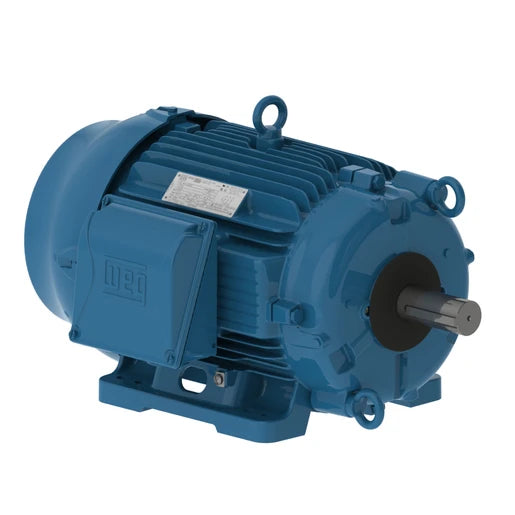

01589EP3QCT254VF1-W2 WEG W22 Cooling Tower High Efficiency Motor (3.75/15 HP, 8/4P, 254T, 3 Phase, 460V, 60 Hz, IC411, TEFC, Foot-mounted)
01589EP3QCT254VF1-W2 WEG W22 Cooling Tower High Efficiency Motor (3.75/15 HP, 8/4P, 254T, 3 Phase, 460V, 60 Hz, IC411, TEFC, Foot-mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:01589EP3QCT254VF1-W2
Precio habitual
$2,289.08 USD
Precio habitual
$2,572.00 USD
Precio de oferta
$2,289.08 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
01589EP3QCT254VF1-W2 WEG W22 Cooling Tower High Efficiency Motor (3.75/15 HP, 8/4P, 254T, 3 Phase, 460V, 60 Hz, IC411, TEFC, Foot-mounted)
These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Frame | 254T |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 1770 rpm |
| Slip | 1.67 % |
| Rated voltage | 460 V |
| Rated current | 19.0 A |
| L. R. Amperes | 127 A |
| LRC | 6.7x(Code H) |
| No load current | 8.20 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 270 % |
| Locked rotor time | 25s (cold) 14s (hot) |
