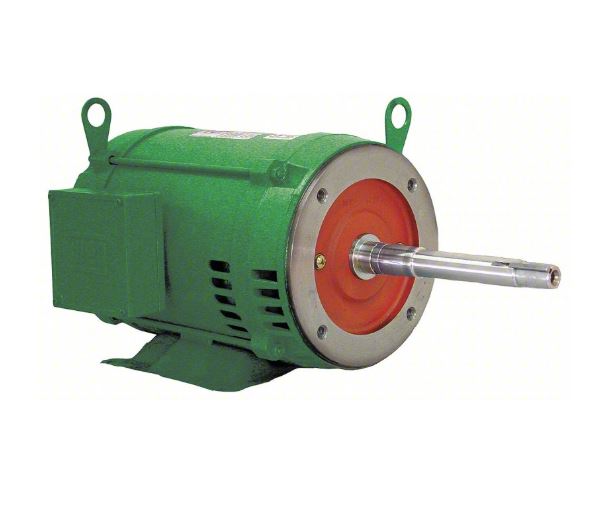

01518OT3E254JP-W40 WEG Close Coupled Pump Motor (15HP, 254JP, 3PH,230/460V, ODP, Foot Mounted)
01518OT3E254JP-W40 WEG Close Coupled Pump Motor (15HP, 254JP, 3PH,230/460V, ODP, Foot Mounted)
SKU:01518OT3E254JP-W40
Precio habitual
$1,453.86 USD
Precio habitual
Precio de oferta
$1,453.86 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
01518OT3E254JP-W40 WEG Pump Motor (15HP, 254JP, 3PH,230/460V, ODP, Foot Mounted)
Model # |
01518OT3E254JP-W40 |
|---|---|
Frame |
254JP |
Output |
15 HP (11 kW) |
Number of Poles |
4 |
Frequency |
60 Hz |
Rated speed |
1770 rpm |
Slip |
1.67 % |
Rated voltage |
230/460 V |
Rated current |
35.0/17.5 A |
L. R. Amperes |
224/112 A |
LRC |
6.4x(Code G) |
No load current |
14.4/7.20 A |
Rated torque |
44.5 ft.lb |
Locked rotor torque |
240 % |
Breakdown torque |
280 % |
Locked rotor time |
30s (cold) 17s (hot) |
