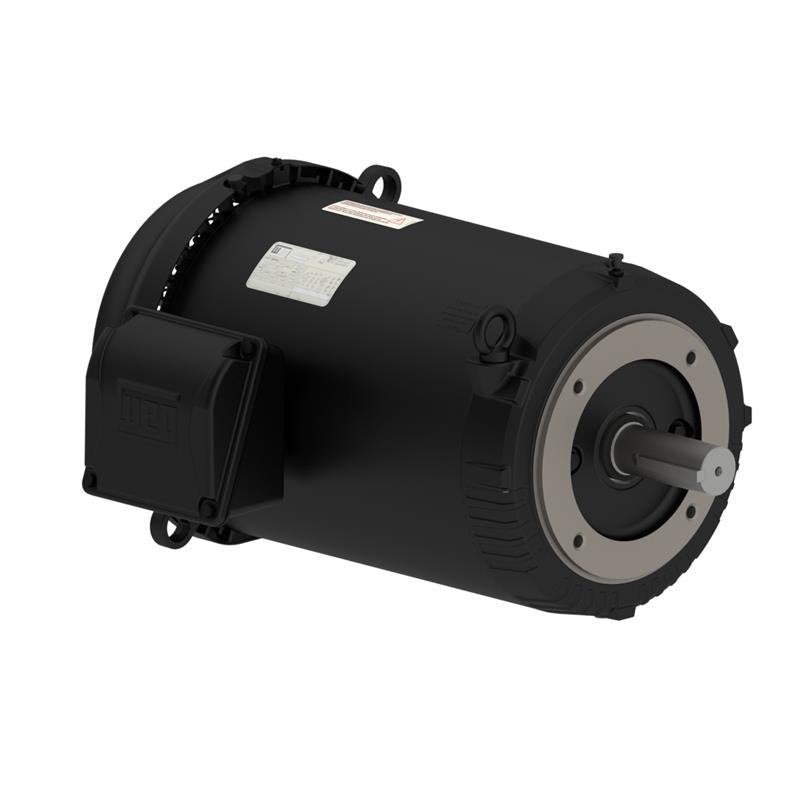

01518ET3ER254TC-S WEG Motor (15 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

01518ET3ER254TC-S WEG Motor (15 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless)

01518ET3ER254TC-S

$1,217.01 USD
$1,217.01 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
WEG 01518ET3ER254TC-S, 15 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
01518ET3ER254TC-S
Type
General Purpose Motor
HP
15
RPM
1800
Phase
3
Frequency
60 Hz
Frame
254/6TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
92.4
FL Amps
18.2
Construction
Rolled Steel
"C" Dimensions
22.559
Drive End Flange Type
C-Face
Warranty
1 Year
