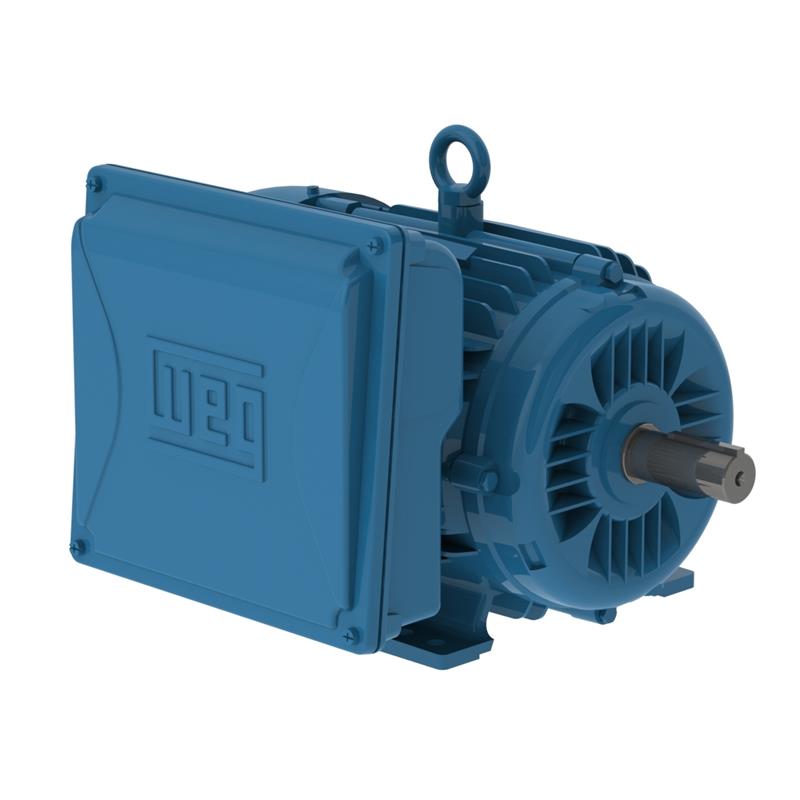

01236ES1C215T-W22 WEG General Purpose Motor (12.5 HP, 3600 RPM, 1 Phase, 215T Frame, TEFC, 208-230 Voltage, Foot Mount)
01236ES1C215T-W22 WEG General Purpose Motor (12.5 HP, 3600 RPM, 1 Phase, 215T Frame, TEFC, 208-230 Voltage, Foot Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:01236ES1C215T-W22
Precio habitual
$1,793.35 USD
Precio habitual
$2,015.00 USD
Precio de oferta
$1,793.35 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 01236ES1C215T-W22, General Purpose Motor, 12.5 HP, 3600 RPM, 1 Phase, 215T Frame, TEFC, 208-230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
01236ES1C215T-W22
|
|
Type
|
General Purpose Motor
|
|
HP
|
12.5
|
|
RPM
|
3600
|
|
Phase
|
1
|
|
Frame
|
215T
|
|
Service Factor
|
1.15
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230
|
|
Motor Mount
|
Foot Mount
|
|
Full Load Efficiency
|
88.5
|
|
Full Load AMPS
|
53.6
|
|
"C" Dimension
|
19.567
|
|
Warranty
|
1 Year
|
|
Support Documents (pdf)
|
