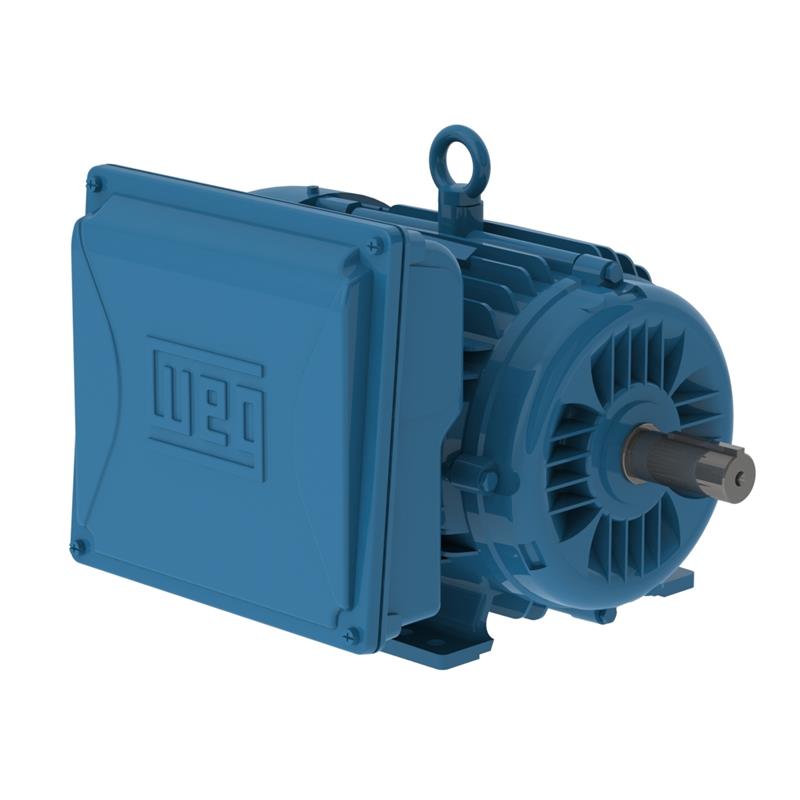

01218ES1E215T-W22 WEG General Purpose Motor (12.5 HP, 1800 RPM, 1 Phase, 215T Frame, TEFC, 208-230/460 Voltage, Foot Mount)
01218ES1E215T-W22 WEG General Purpose Motor (12.5 HP, 1800 RPM, 1 Phase, 215T Frame, TEFC, 208-230/460 Voltage, Foot Mount)
SKU:01218ES1E215T-W22
Precio habitual
$1,294.26 USD
Precio habitual
$1,776.00 USD
Precio de oferta
$1,294.26 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
WEG 01218ES1E215T-W22, General Purpose Motor, 12.5 HP, 1800 RPM, 1 Phase, 215T Frame, TEFC, 208-230/460 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
01218ES1E215T-W22
|
|
Type
|
General Purpose Motor
|
|
HP
|
12.5
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
Frame
|
215T
|
|
Service Factor
|
1.15
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230/460
|
|
Motor Mount
|
Foot Mount
|
|
Full Load Efficiency
|
84
|
|
Full Load AMPS
|
24
|
|
"C" Dimension
|
19.567
|
|
Warranty
|
1 Year
|
|
Support Documents (pdf)
|
